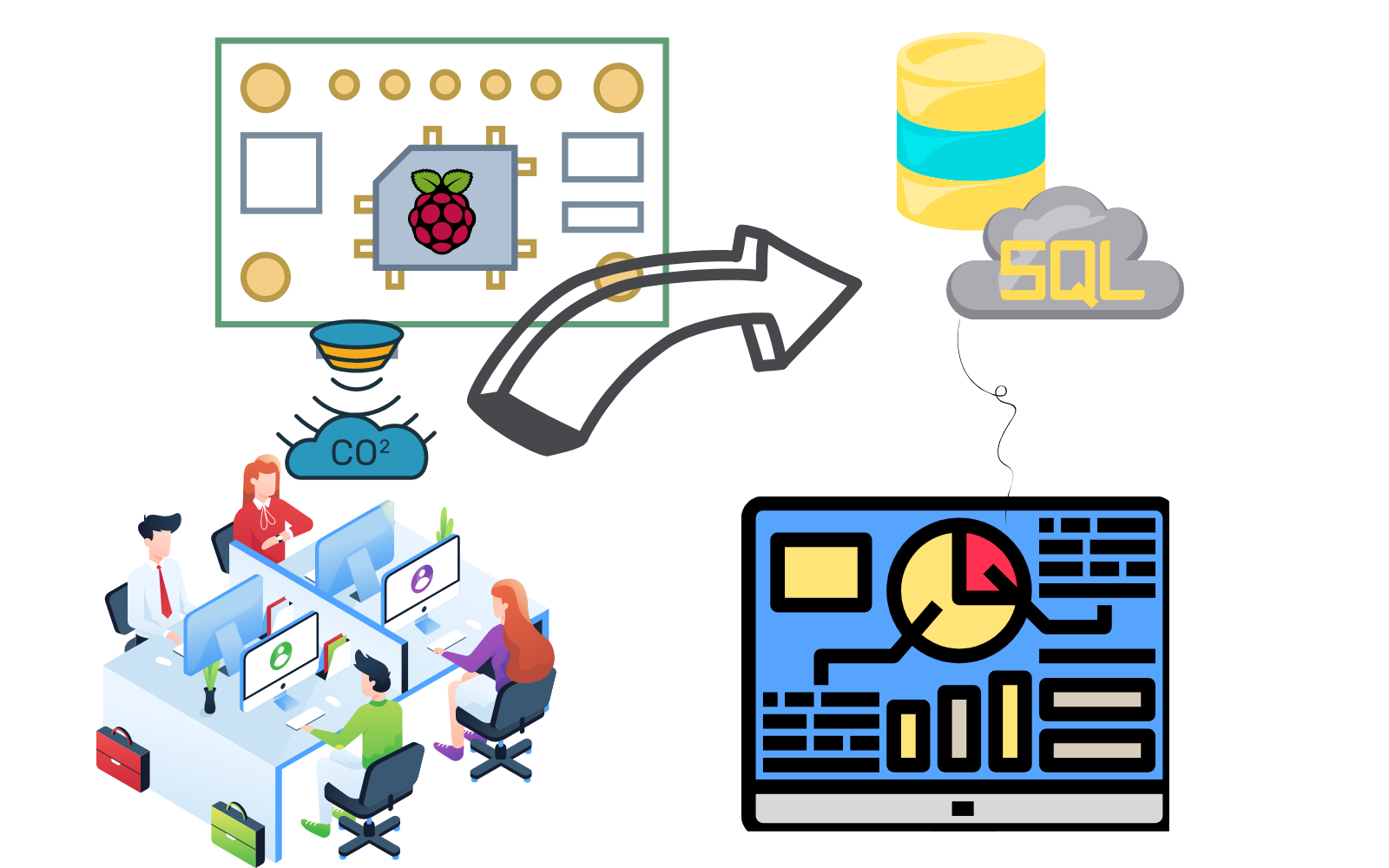

[Raspberry] JX-CO2-101 CO2 Sensor with GPIO use UART - 图4

Reading Data

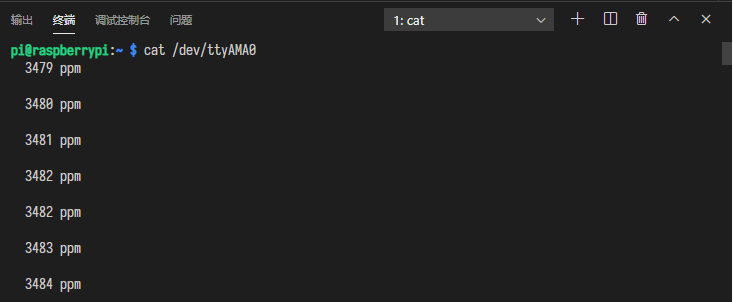

  1. cat /dev/ttyAMA0


Step

RasberryPi 3B+ install golang

  1. wget https://golang.org/dl/go1.15.8.linux-armv6l.tar.gz
  2. tar -C /usr/local -xzf go1.15.8.linux-armv6l.tar.gz && rm -f go1.15.8.linux-armv6l.tar.gz
  3. echo "export PATH=$PATH:/usr/local/go/bin" >> ~/.bash_profile
  4. export PATH=$PATH:/usr/local/go/bin
  5. go version

Read Serial Data

  1. package main
  3. import (
  4.     "log"
  5.     "time"
  7.     "github.com/tarm/serial"
  8. )
  10. // pi3 should open uart and communicate with device: /dev/ttyAMA0 | /dev/serial0
  11. func main() {
  12.     c := &serial.Config{Name: "/dev/ttyAMA0", Baud: 9600, ReadTimeout: time.Second * 5}
  13.     s, err := serial.OpenPort(c)
  14.     if err != nil {
  15.         log.Fatal(err)
  16.     }
  18.     n, err := s.Write([]byte{0xff, 0x01, 0x03, 0x02, 0x00, 0x00, 0x00, 0x00, 0xfb})
  19.     log.Println("write n", n)
  20.     if err != nil {
  21.         log.Fatal(err)
  22.     }
  24.     buf := make([]byte, 128)
  25.     n, err = s.ReadAll(buf)
  26.     if err != nil {
  27.         log.Fatal(err)
  28.     }
  29.     log.Printf("%q", buf[:n])
  30. }

Server

receive data from edge device

  1. func (d dioxideDensity) RegistRouter(r gin.IRouter) {
  2.     r.POST("/dioxide", d.Add)
  3. }
  5. func (d dioxideDensity) Add(c *gin.Context) {
  6.     var req struct {
  7.         DioxideDensity int    `json: "dioxide" binding:"required"`
  8.         DeviceId       string `json: "deviceId" binding:"required"`
  9.         // Status         int `json: "status" binding:"required"`
  10.         ZoneName string `json: "zoneName" binding:"required"`
  11.     }
  13.     if err := c.ShouldBind(&req); err != nil {
  14.         c.Error(err)
  15.         c.JSON(http.StatusBadRequest, gin.H{"status": http.StatusBadRequest})
  16.         return
  17.     }
  19.     err := mysql.InsertDioxide(d.db, req.DioxideDensity, 0, req.ZoneName, req.DeviceId)
  20.     if err != nil {
  21.         log.Println(err)
  22.     }
  23.     c.JSON(http.StatusOK, gin.H{"status": http.StatusOK})
  24. }

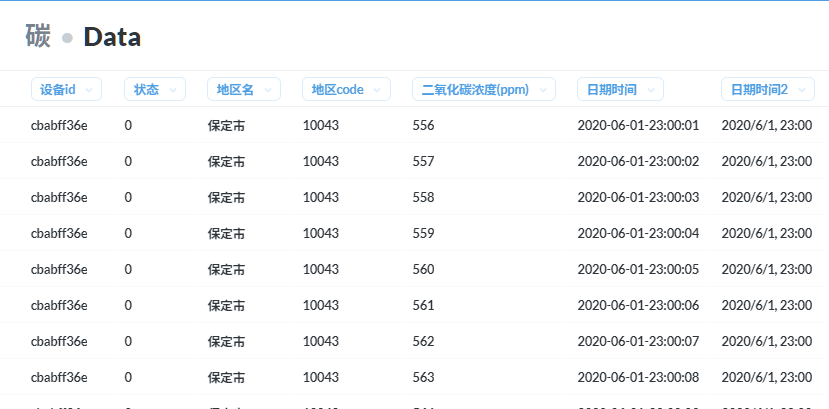

Data Model

A. 园区省市模式
B. 经纬度地点模式

  • 需要通过 4G 模块上报 GPS 位置

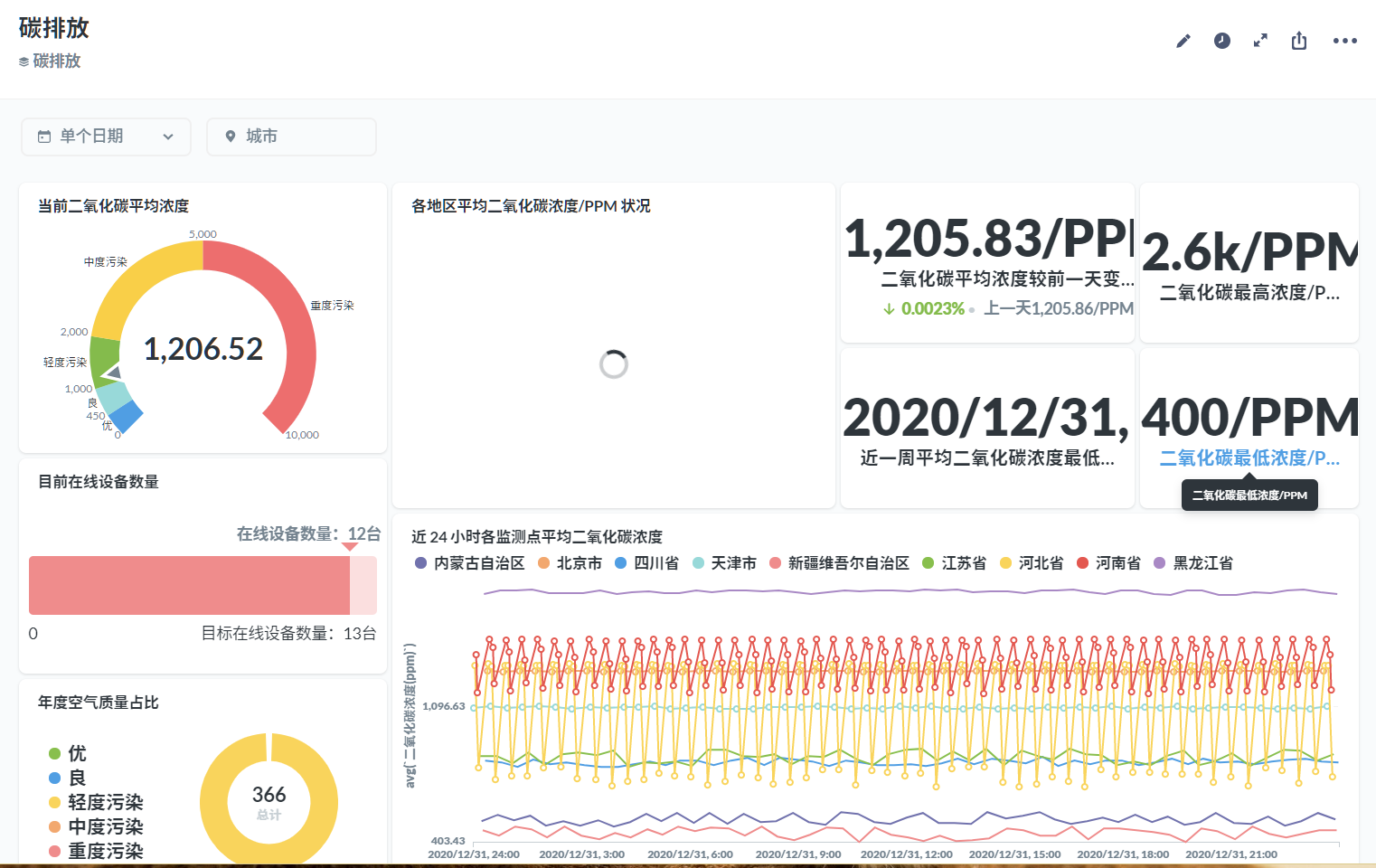

Display


Resource

适合嵌入 PPT 的代码图片生成
