第一节：方盒子的新衣梦（基于实例规则表面生成饰面）

写在前面：
此文档为本人日常思维脑图，日常记录使用，对外公开源于奢望大佬提携指正，所以日常混乱，断档和增删实属正常。
若有精力，定期整理。
希望各路大佬提点小赵同学，为祖国建设，添砖加瓦。
本人微信 / 邮箱：Still_destine / bim888@foxmail.com
感谢python小甲鱼及dynamo姑娘胡老师的启蒙教育，在此鸣谢！

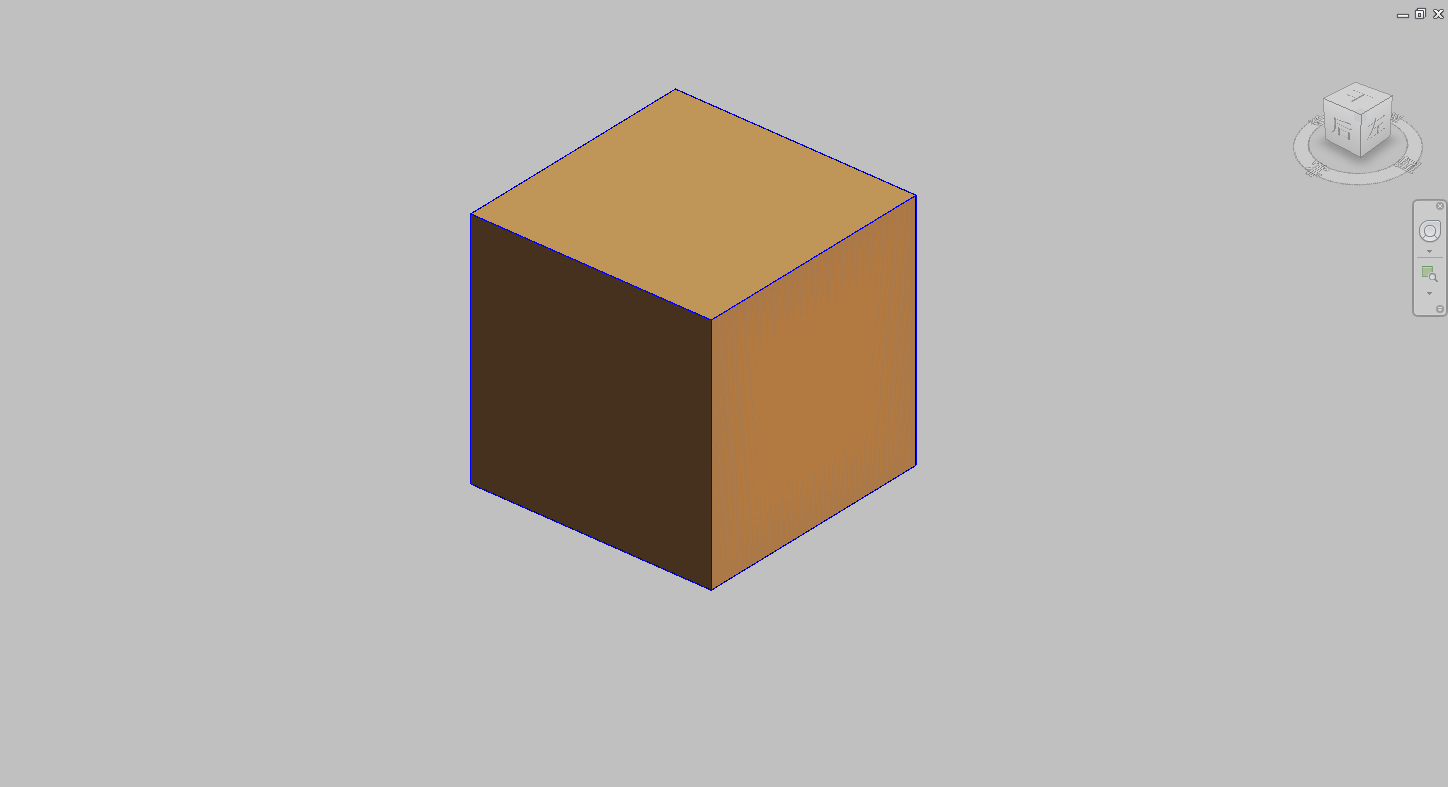

示例：一枚赤裸裸的方盒子。性感的裁缝小姐姐为我量完尺寸，让我的脸红里透着黄（表示dynamo已经获取到了surface）。温暖洁白的新衣，将我包裹了起来，感谢裁缝小姐姐无微不至的关心。
视频演示： 好啦 进入正题，通过上边的案例我们了解到，经过一些列的程序运算，我们本来赤裸的盒子，已经有了自己的衣服，最终畅想在系列完结时，我们可以得到一个一键生成正确扣减后，存在模型实体，包含必要信息的装饰模型。
日后我会尝试编辑预留的思路和各种路线的优缺点。
立方体.rar日常练习的revit文件我放在这里啦，大家可以下载把玩，注意小心轻放。
这个案例的dynamo源文件我也放在下面了：V我索要密码，不是收费，主要是想交个朋，哈哈哈。

正 文开始：最后更新于/2020/06/10
[20200531~20200609] 时光一去不复返
[20200610~20200610] 梦想启航的日子
[20200611~20200612] 处理新增饰面的curve，以确保接缝正确
[20200613~20200613] 去火星钓鱼
[20200614~20200614] python充电 拜见恩师小甲鱼
[20200615~20200617] 做一个两个独立实体的BOOL差集处理，简单测试扣减合并
[20200618~20200704] 研发周期
思维导图：未完结 流程图

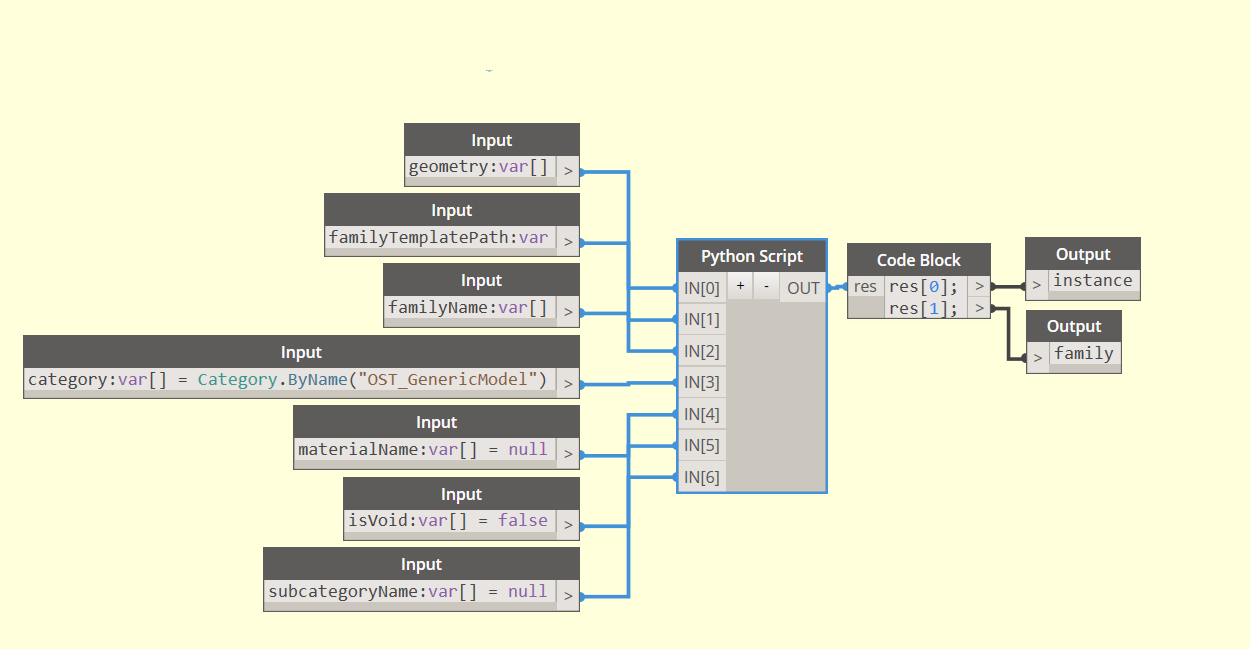

上述流程图的python节点

#Copyright(c) 2016, Dimitar Venkov
# @5devene, dimitar.ven@gmail.com
import clr
import System
from System.Collections.Generic import *
from itertools import repeat
pf_path = System.Environment.GetFolderPath(System.Environment.SpecialFolder.ProgramFilesX86)
import sys
sys.path.append('%s\IronPython 2.7\Lib' %pf_path)
import traceback
clr.AddReference('ProtoGeometry')
from Autodesk.DesignScript.Geometry import *
from Autodesk.DesignScript.Geometry import Point as DynPoint
clr.AddReference('RevitServices')
import RevitServices
from RevitServices.Persistence import DocumentManager
from RevitServices.Transactions import TransactionManager
doc = DocumentManager.Instance.CurrentDBDocument
clr.AddReference('RevitAPI')
from Autodesk.Revit.DB import *
from Autodesk.Revit.DB.Structure import StructuralType
clr.AddReference('RevitNodes')
import Revit
clr.ImportExtensions(Revit.Elements)
clr.ImportExtensions(Revit.GeometryConversion)
def tolist(obj1):
    if hasattr(obj1,'__iter__'): return obj1
    else: return [obj1]
def PadLists(lists):
    len1 = len(lists[0])
    for i in xrange(1,len(lists)):
        len2 = len(lists[i])
        if len2 == len1 : continue
        elif len2 > len1: lists[i] = lists[i][:len1]
        else : lists[i].extend(repeat(lists[i][-1],len1 - len2))
    return lists
class FamOpt1(IFamilyLoadOptions):
    def __init__(self):
        pass
    def OnFamilyFound(self,familyInUse, overwriteParameterValues):
        return True
    def OnSharedFamilyFound(self,familyInUse, source, overwriteParameterValues):
        return True
geom = tolist(IN[0])
fam_path = IN[1]
names = tolist(IN[2])
category = tolist(IN[3])
material = tolist(IN[4])
isVoid = tolist(IN[5])
subcat = tolist(IN[6])
units = doc.GetUnits().GetFormatOptions(UnitType.UT_Length).DisplayUnits
factor = UnitUtils.ConvertToInternalUnits(1,units)
acceptable_views = ('ThreeD', 'FloorPlan', 'EngineeringPlan', 'CeilingPlan', 'Elevation', 'Section')
origin = XYZ.Zero
str_typ = StructuralType.NonStructural
t1 = TransactionManager.Instance
temp_path = System.IO.Path.GetTempPath()
invalid_chars = System.IO.Path.GetInvalidFileNameChars()
satOpt = SATImportOptions()
satOpt.Placement = ImportPlacement.Origin
satOpt.Unit = ImportUnit.Foot
opt1 = Options()
opt1.ComputeReferences = True
SaveAsOpt = SaveAsOptions()
SaveAsOpt.OverwriteExistingFile = True
def NewForm_background(s1, name1, cat1, isVoid1, mat1, subcat1):
    try:
        enable_mat = False if mat1 is None else True
        enable_subcat = False if subcat1 is None else True
        if any( (c in name1 for c in invalid_chars) ):
            raise Exception('Family name contains invalid characters')
        TransactionManager.ForceCloseTransaction(t1)
        famdoc = doc.Application.NewFamilyDocument(fam_path)
        sat_path = '%s%s.sat' % (temp_path, name1)
        if factor != 1:
            s1 = s1.Scale(factor)
        vec1 = Vector.ByTwoPoints(BoundingBox.ByGeometry(s1).MinPoint, DynPoint.Origin())
        s1 = s1.Translate(vec1)
        sat1 = Geometry.ExportToSAT(s1, sat_path)
        view_fec = FilteredElementCollector(famdoc).OfClass(View)
        view1 = None
        for v in view_fec:
            if str(v.ViewType) in acceptable_views and not v.IsTemplate:
                view1 = v
                break
        t1.EnsureInTransaction(famdoc)
        satId = famdoc.Import(sat1, satOpt, view1)
        el1 = famdoc.GetElement(satId)
        geom1 = el1.get_Geometry(opt1)
        enum = geom1.GetEnumerator()
        enum.MoveNext()
        geom2 = enum.Current.GetInstanceGeometry()
        enum2 = geom2.GetEnumerator()
        enum2.MoveNext()
        s1 = enum2.Current
        famdoc.Delete(satId)
        System.IO.File.Delete(sat_path)
        save_path = '%s%s.rfa' % (temp_path, name1)
        try: #set the category
            fam_cat = famdoc.Settings.Categories.get_Item(cat1.Name)
            famdoc.OwnerFamily.FamilyCategory = fam_cat
        except: pass
        s2 = FreeFormElement.Create(famdoc,s1)
        if isVoid1:
            void_par = s2.get_Parameter(BuiltInParameter.ELEMENT_IS_CUTTING).Set(1)
            void_par2 = famdoc.OwnerFamily.get_Parameter(BuiltInParameter.FAMILY_ALLOW_CUT_WITH_VOIDS).Set(1)
        else: #voids do not have a material values or a sub-cateogry
            if enable_mat:
                try:
                    mat_fec = FilteredElementCollector(famdoc).OfClass(Material)
                    for m in mat_fec:
                        if m.Name == mat1:
                            fam_mat = m
                            break
                    mat_par = s2.get_Parameter(BuiltInParameter.MATERIAL_ID_PARAM).Set(fam_mat.Id)
                except: pass
            if enable_subcat: #create and assign the sub-category:
                try:
                    current_fam_cat = famdoc.OwnerFamily.FamilyCategory
                    fam_cat_subs = current_fam_cat.SubCategories
                    if fam_cat_subs.Contains(subcat1):
                        new_subcat = fam_cat_subs[subcat1]
                    else:
                        new_subcat = famdoc.Settings.Categories.NewSubcategory(current_fam_cat, subcat1)
                    s2.Subcategory = new_subcat
                except: pass
        TransactionManager.ForceCloseTransaction(t1)
        famdoc.SaveAs(save_path, SaveAsOpt)
        family1 = famdoc.LoadFamily(doc, FamOpt1() )
        famdoc.Close(False)
        System.IO.File.Delete(save_path)
        symbols = family1.GetFamilySymbolIds().GetEnumerator()
        symbols.MoveNext()
        symbol1 = doc.GetElement(symbols.Current)
        t1.EnsureInTransaction(doc)
        if not symbol1.IsActive: symbol1.Activate()
        inst1 = doc.Create.NewFamilyInstance(origin, symbol1, str_typ)
        ElementTransformUtils.MoveElement(doc,inst1.Id, vec1.Reverse().ToXyz() )
        TransactionManager.ForceCloseTransaction(t1)
        return inst1.ToDSType(False), family1.ToDSType(False)
    except:
        return traceback.format_exc(),''
if len(geom) == len(names) == len(category) == len(isVoid) == len(material) == len(subcat):
    return1 = map(NewForm_background, geom, names, category, isVoid, material, subcat)
elif len(geom) == len(names):
    padded = PadLists([geom, category, isVoid, material,subcat])
    p_category, p_isVoid, p_material, p_subcat = padded[1], padded[2], padded[3], padded[4]
    return1 = map(NewForm_background, geom, names, p_category, p_isVoid, p_material, p_subcat)
else : return1 = [('Make sure that each geometry\nobject has a unique family name.', '')]
OUT = [i[0] for i in return1], [i[1] for i in return1]
satOpt.Dispose()
opt1.Dispose()
SaveAsOpt.Dispose()

完整生成多个实体模型独立外表面的dynamo节点，源文件文中已上传。
