华为私有云平台镜像制作

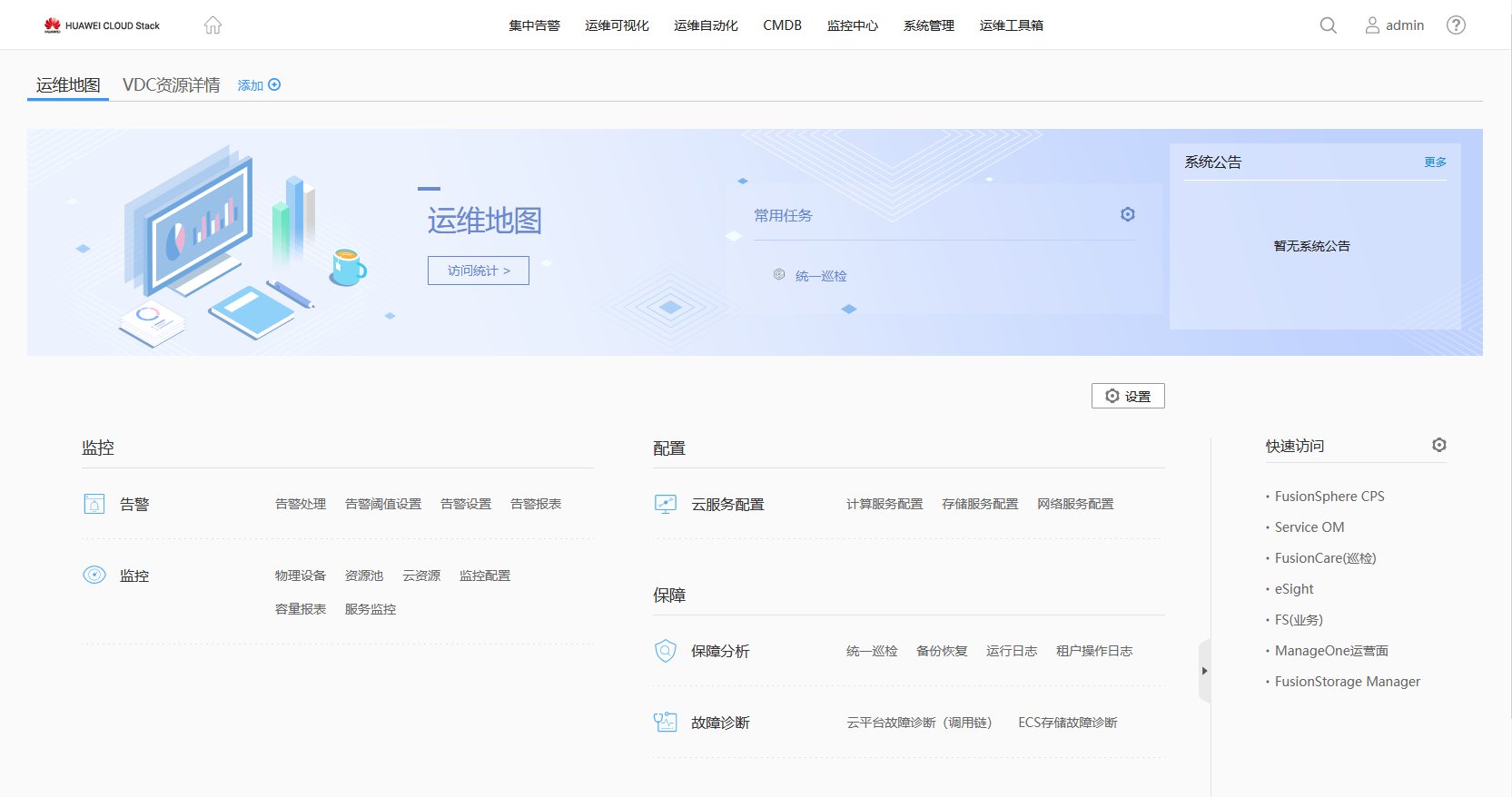

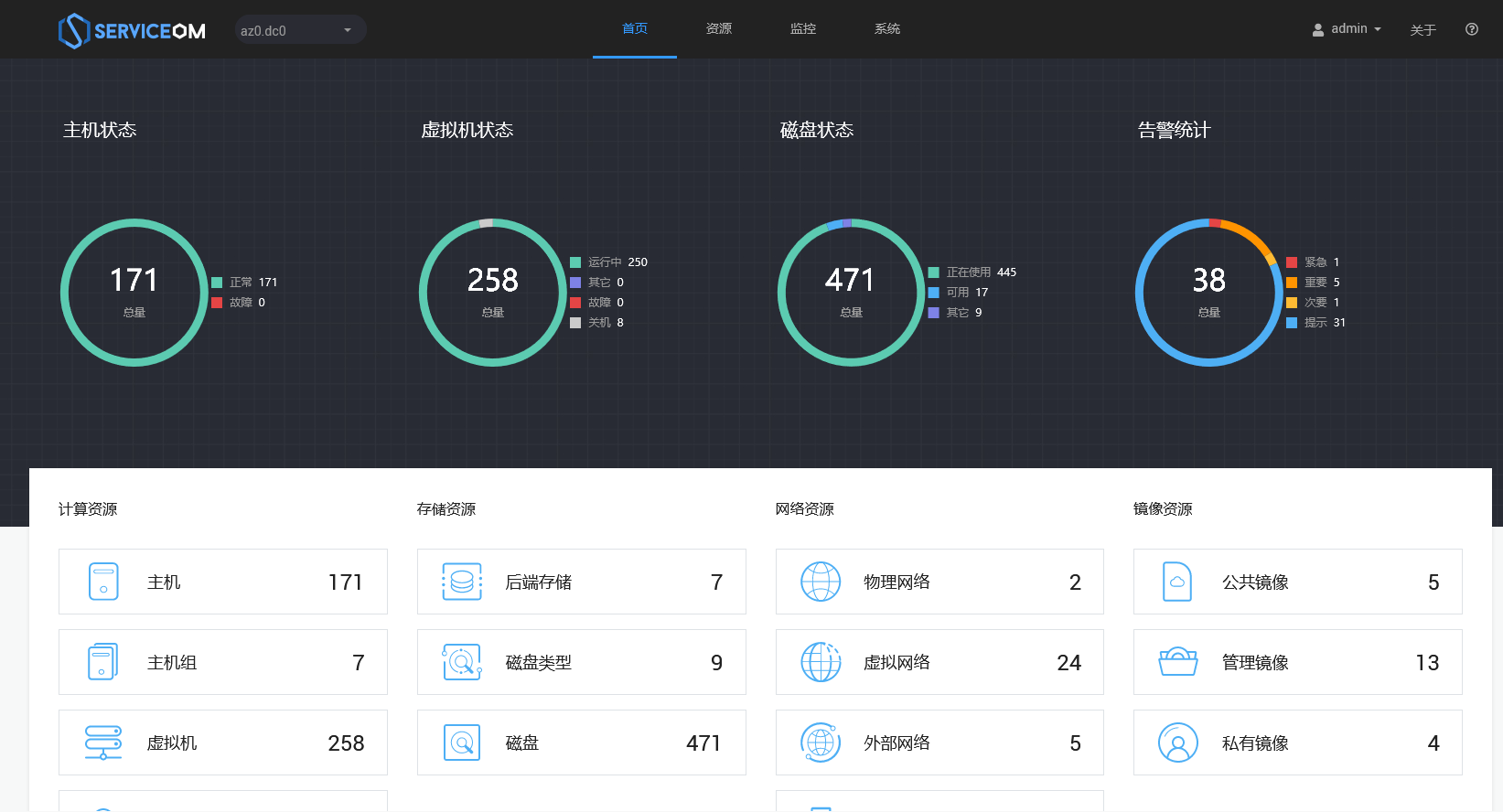

1:登录运维面

2:进入右下角导航栏快速访问，点击ServiceOM(shanghai) 跳转到新的窗口

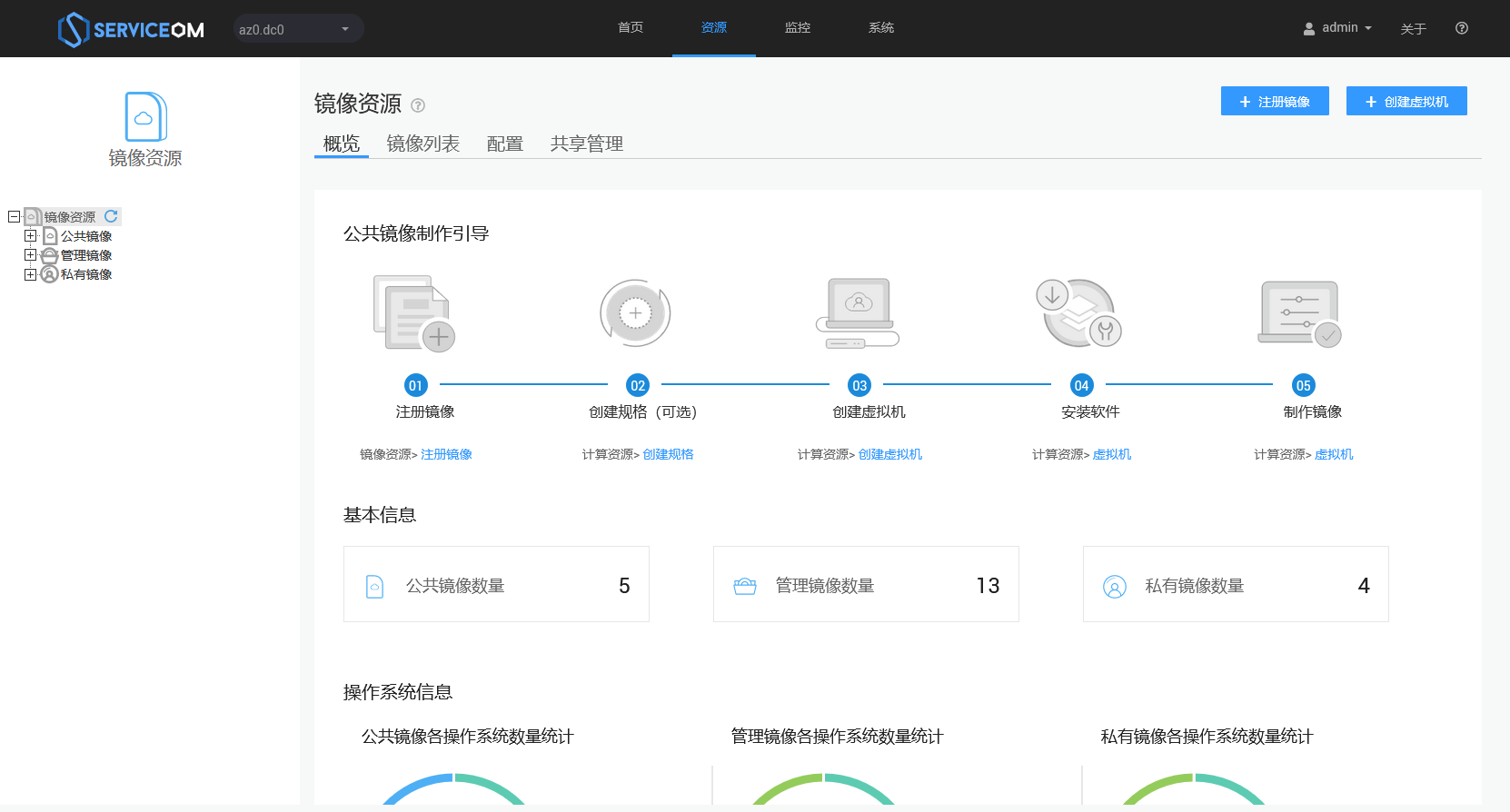

3:点击资源里的镜像资源

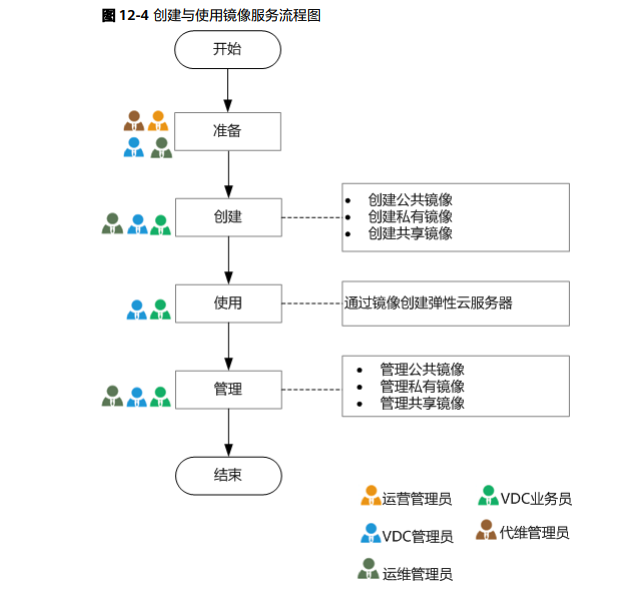

制作镜像流程:
具体请参考用户指南手册12章<镜像服务>

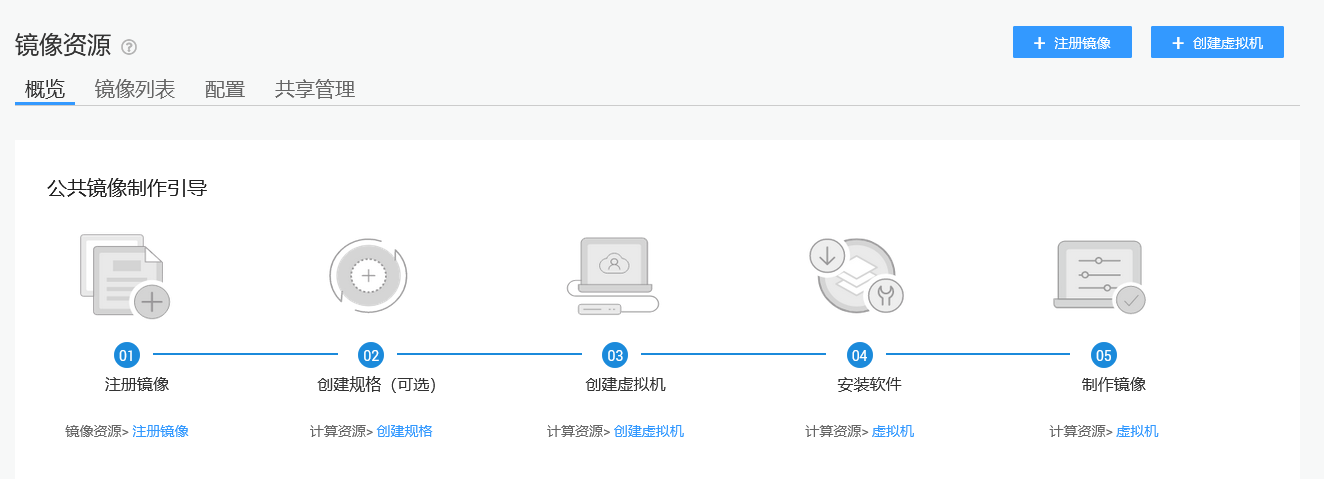

4:公共镜像流程

注册镜像
创建规格
创建虚拟机
安装vmtools

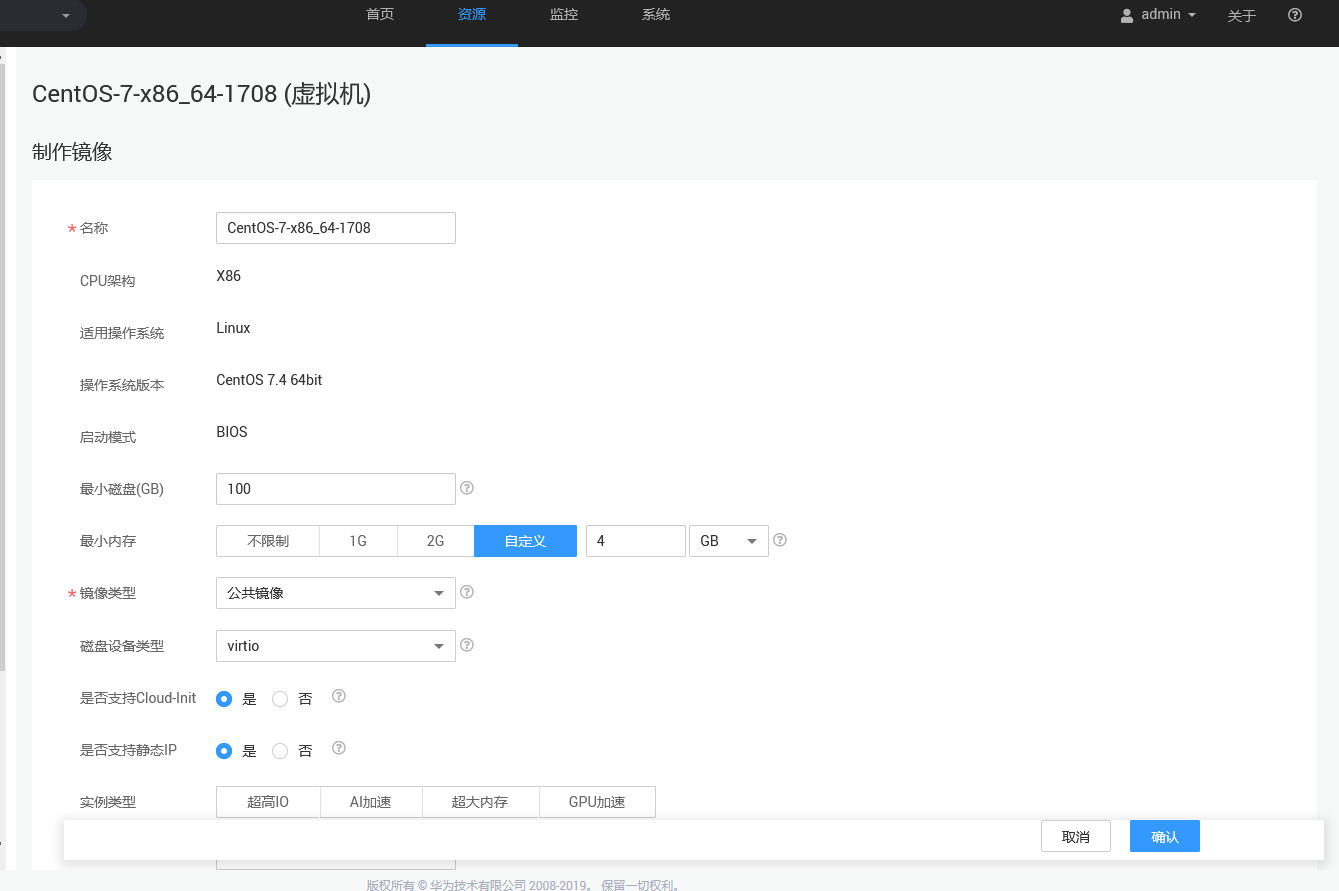

制作镜像

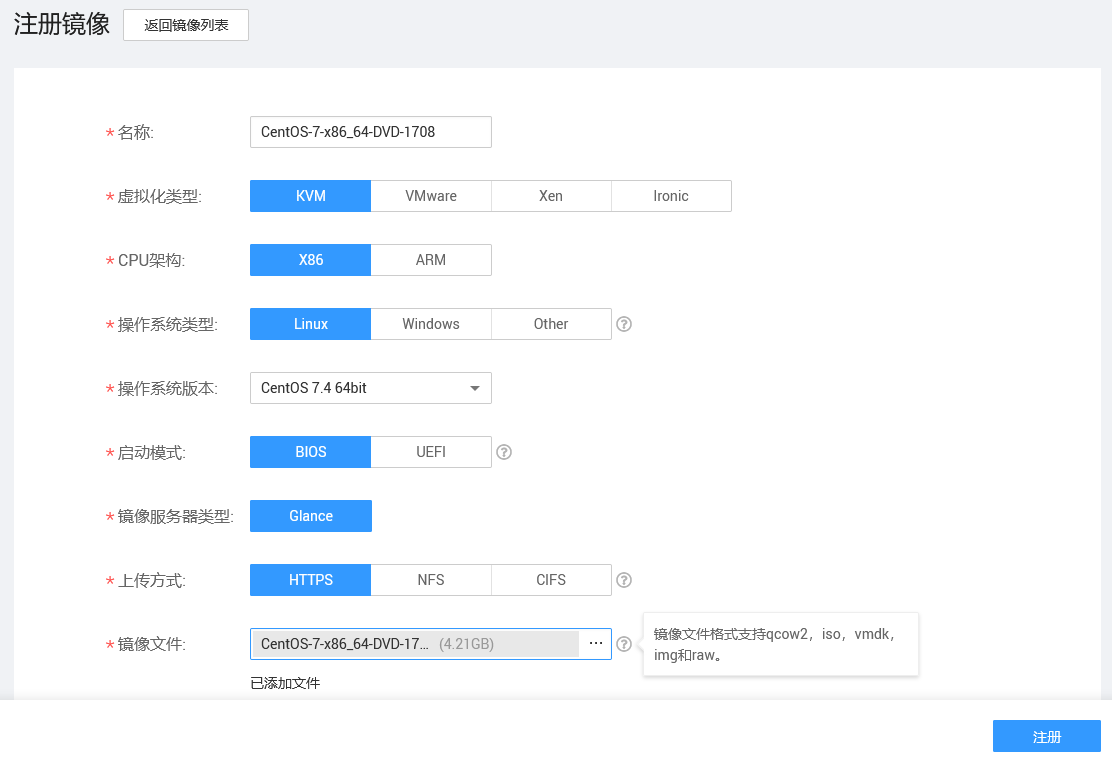

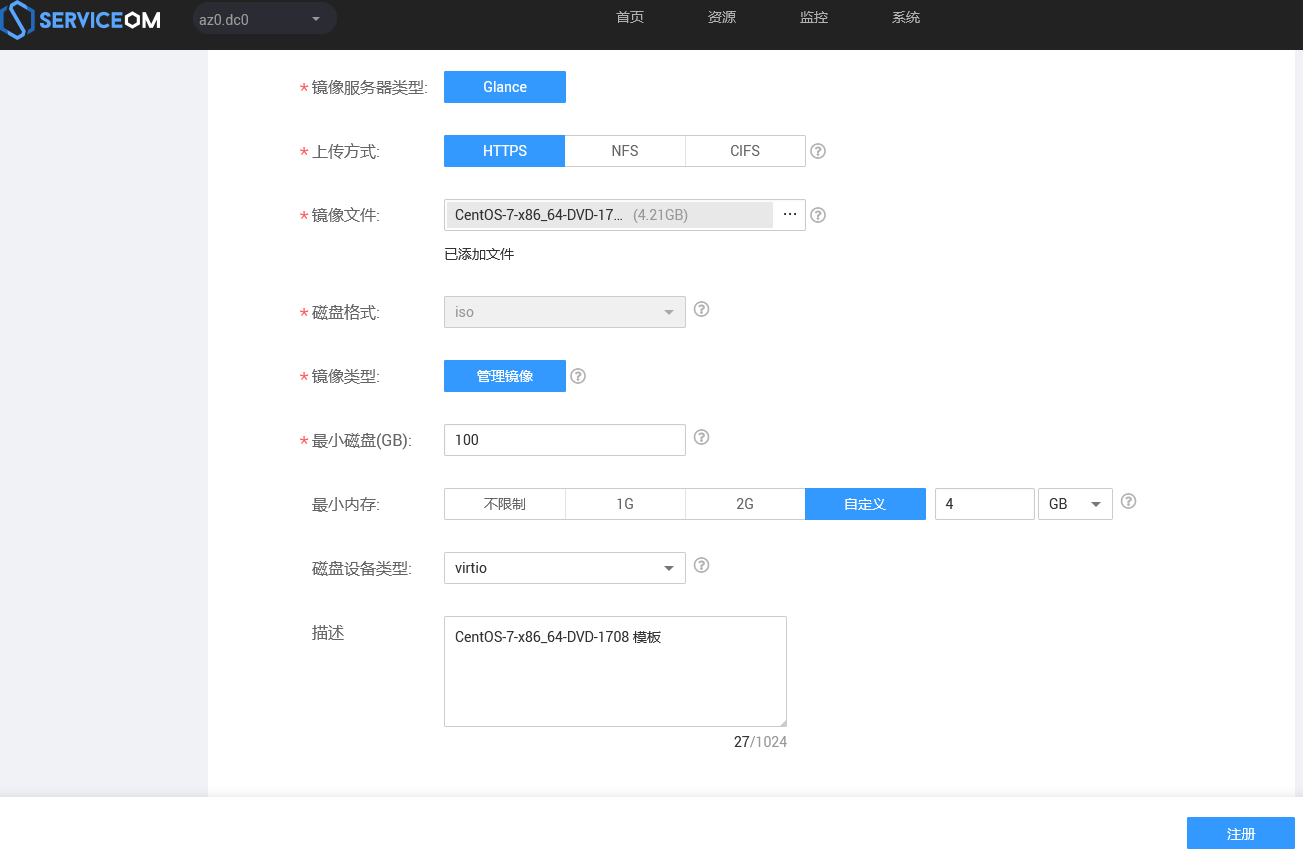

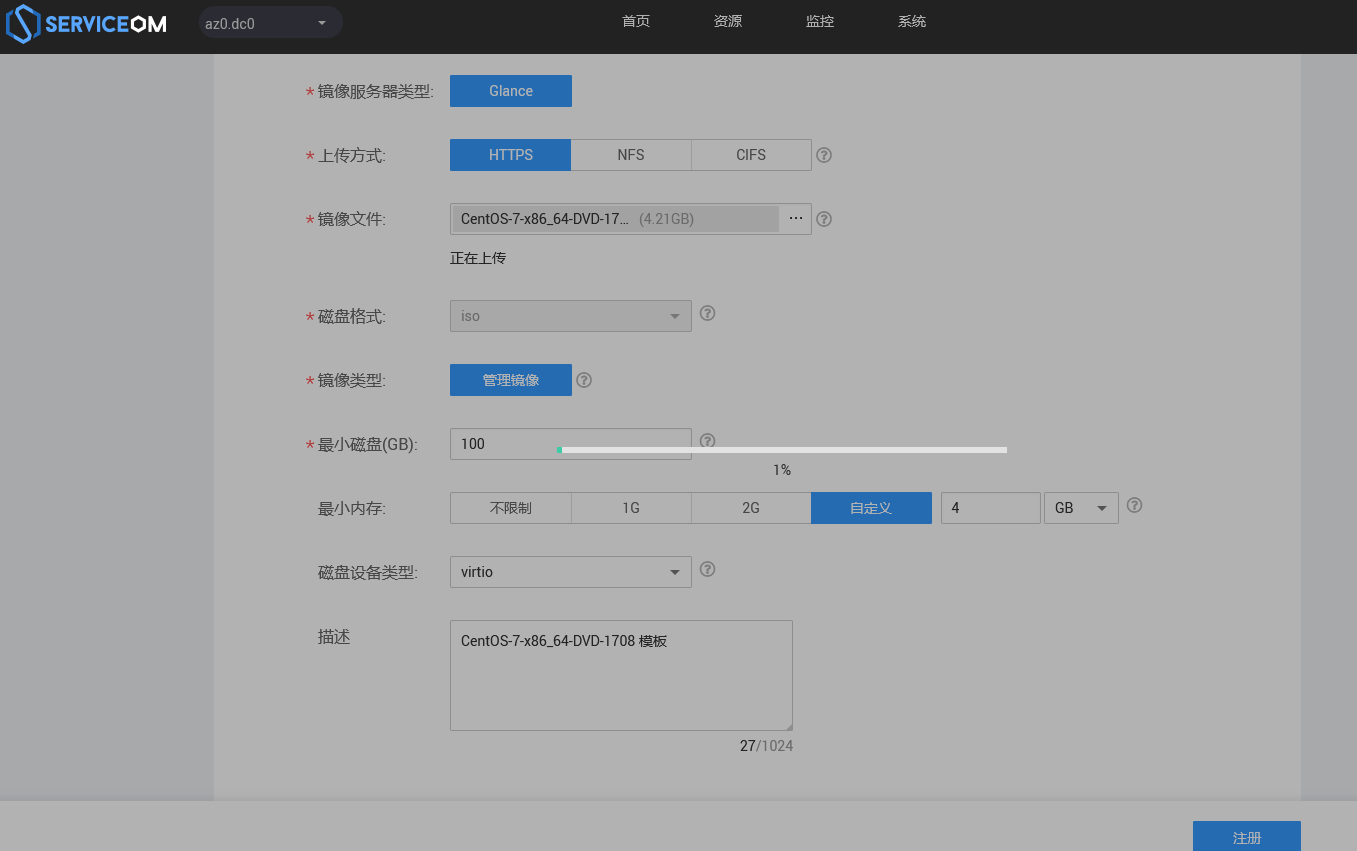

5:填写注册镜像信息

规格要求请填写
虚拟化：KVM
CPU:X86
操作系统：Linux
内存：4GB
磁盘：10GB
上传方式：HTTPS
磁盘设备类型：virtio

6:选择本地光盘通过HTTPS方式上传

最小磁盘：
使用该镜像创建虚拟机时，对于虚拟机磁盘大小的最低要求。
ISO格式镜像：
Windows操作系统，建议最小磁盘不小于60G。
Linux操作系统，建议最小磁盘不小于20G。
非ISO格式镜像：
不小于制作镜像时使用的虚拟机磁盘大小。

最小内存：
使用该镜像创建的弹性云服务器内存大小的最低要求：
若不限制最小内存，租户界面申请弹性云服务器时可以选择到所有内存大小的规格；
若设置为具体值，租户界面申请弹性云服务器时只能选择到内存大小大于设置值的规格。

设备类型：
系统磁盘读写数据时与主机通讯的总线类型。
建议优先选择virtio；若业务要求使用scsi类型的磁盘，需要选择scsi（virtio类型磁盘性能略优于scsi类型磁盘，ide类型磁盘性能较差）。
注册非ISO格式的Windows系统镜像时，若已安装UVP VMTools，建议选择virtio；否则，需要选择为ide。

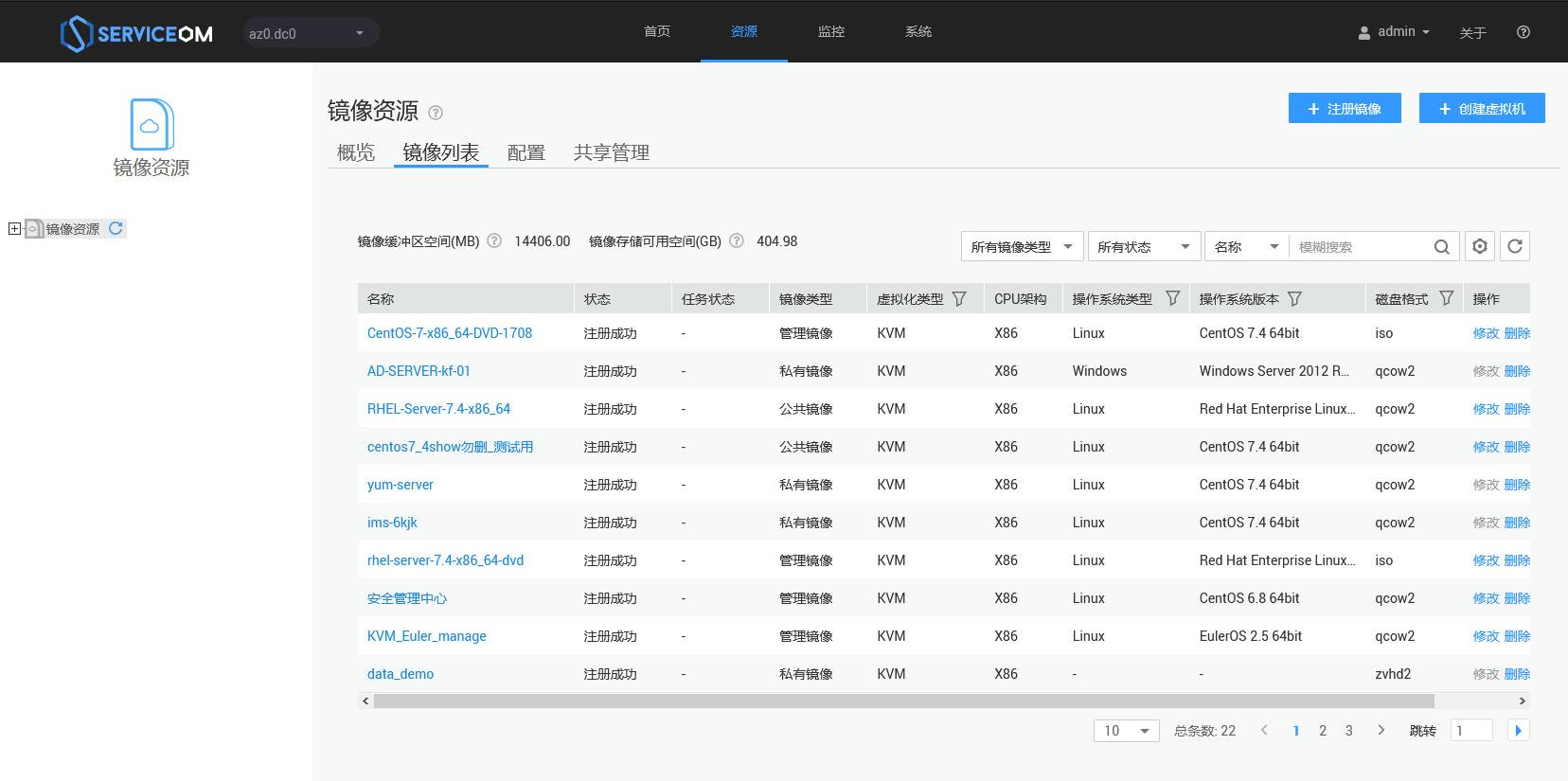

7:注册镜像上传中

7:使用注册的镜像创建模板虚拟机

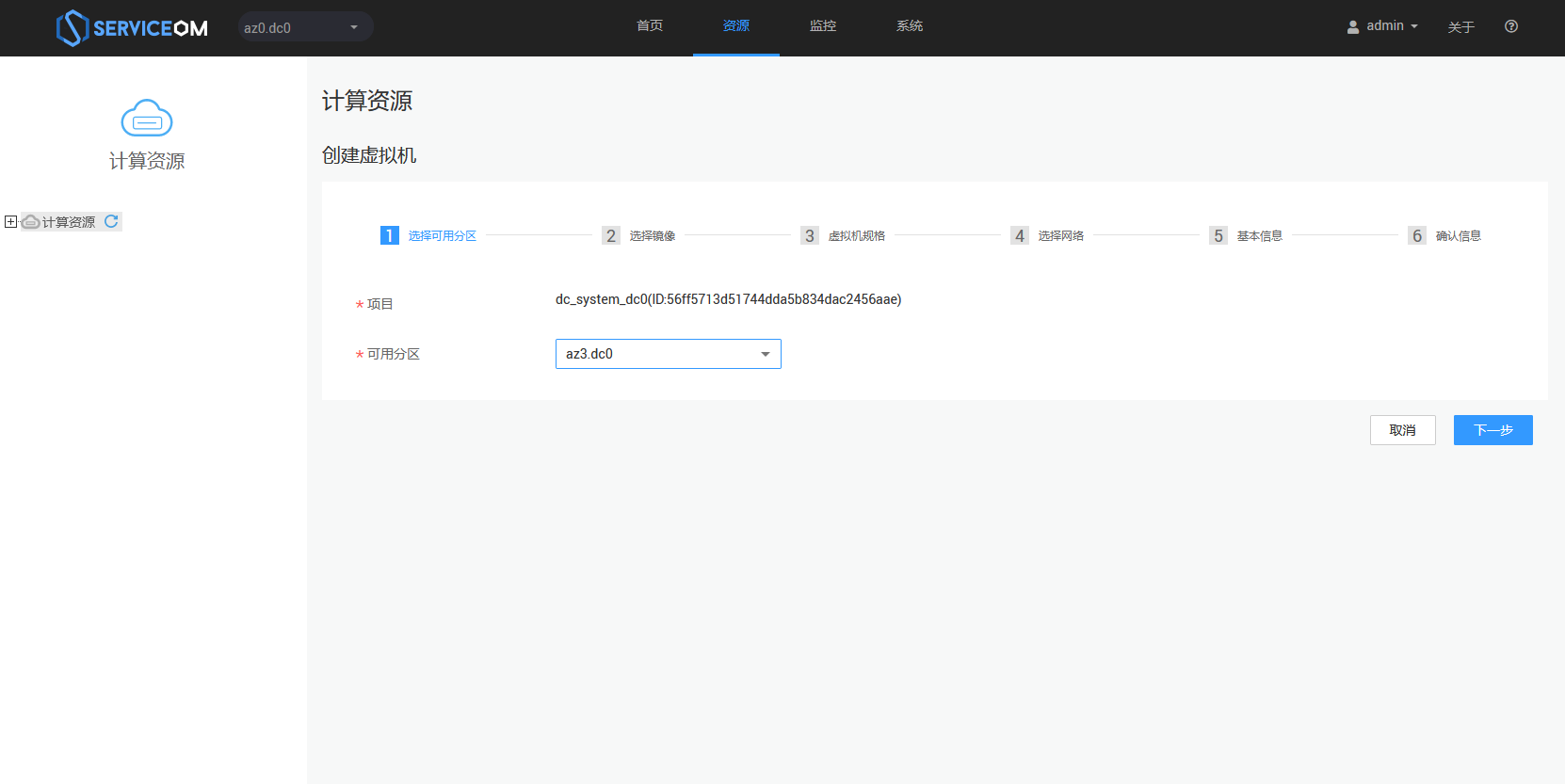

8:可用区选择 az6.dc ——运维管理区

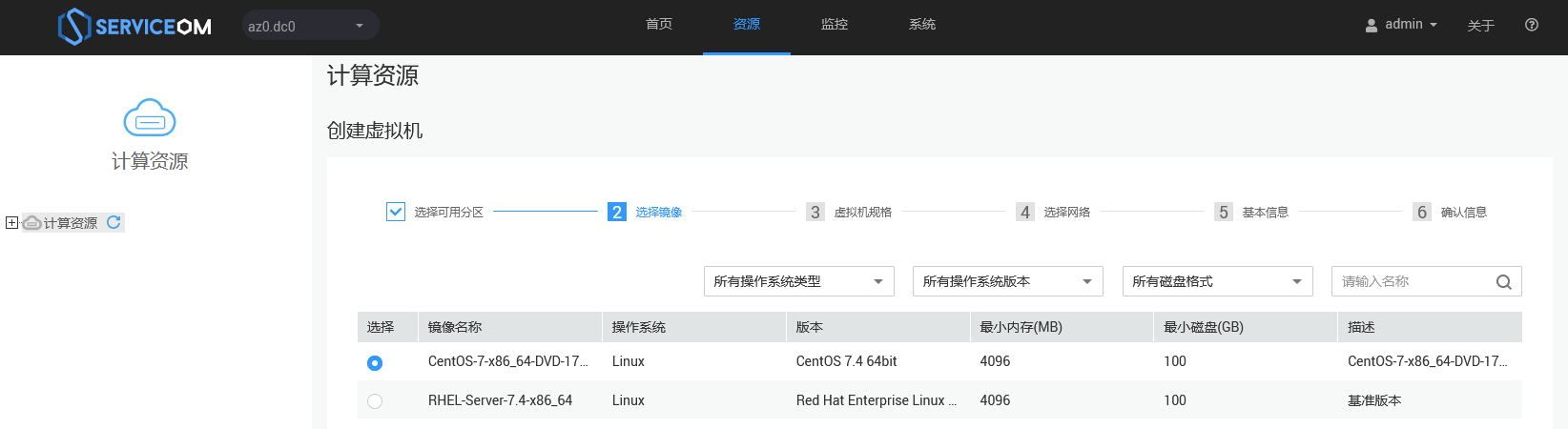

9:选择刚刚注册的IOS镜像

10:规格选择已有的最小规格4C8G 系统盘选择使用云磁盘

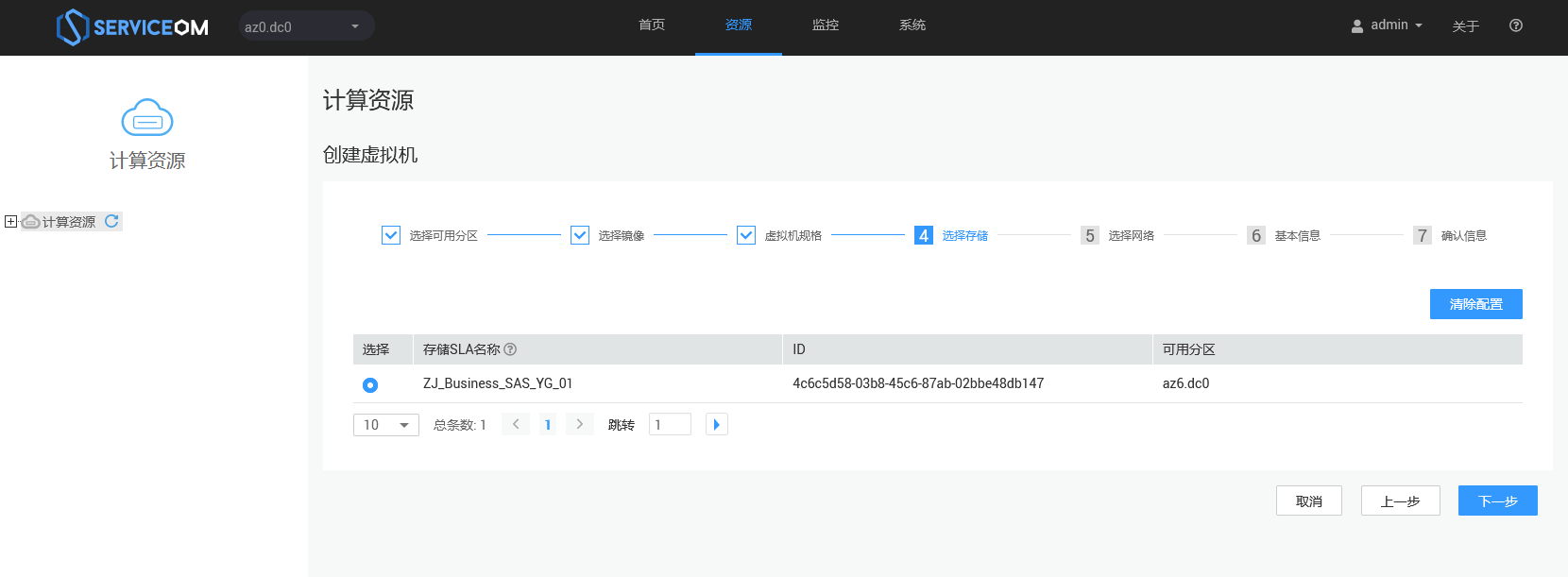

11:使用默认az6后端存储

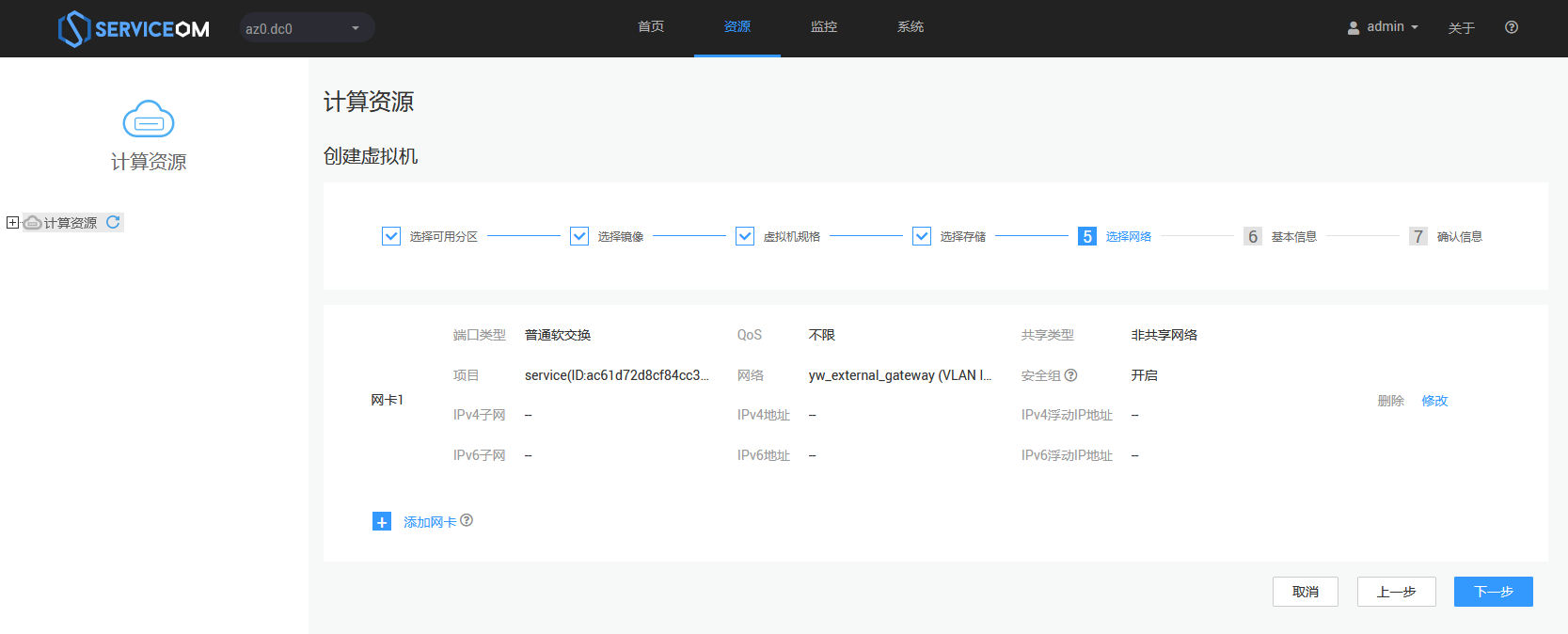

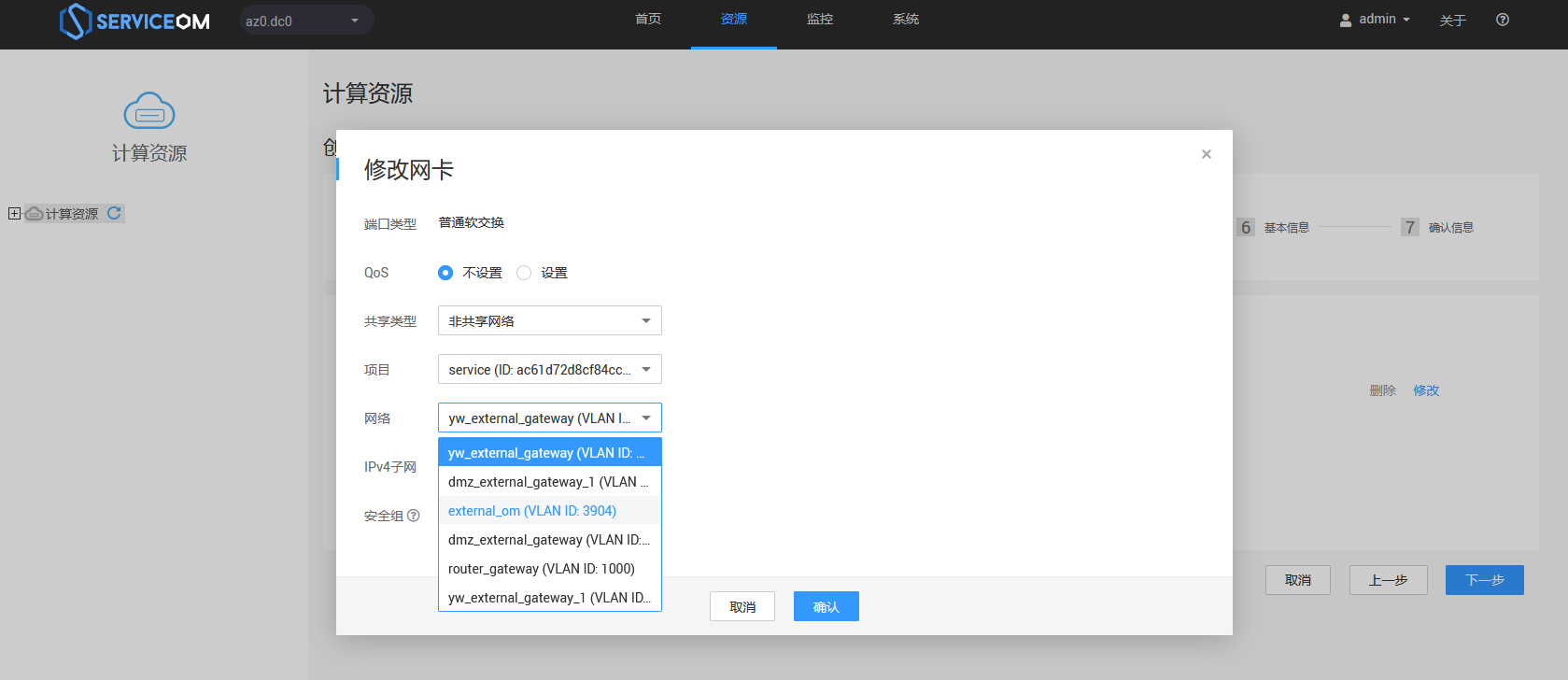

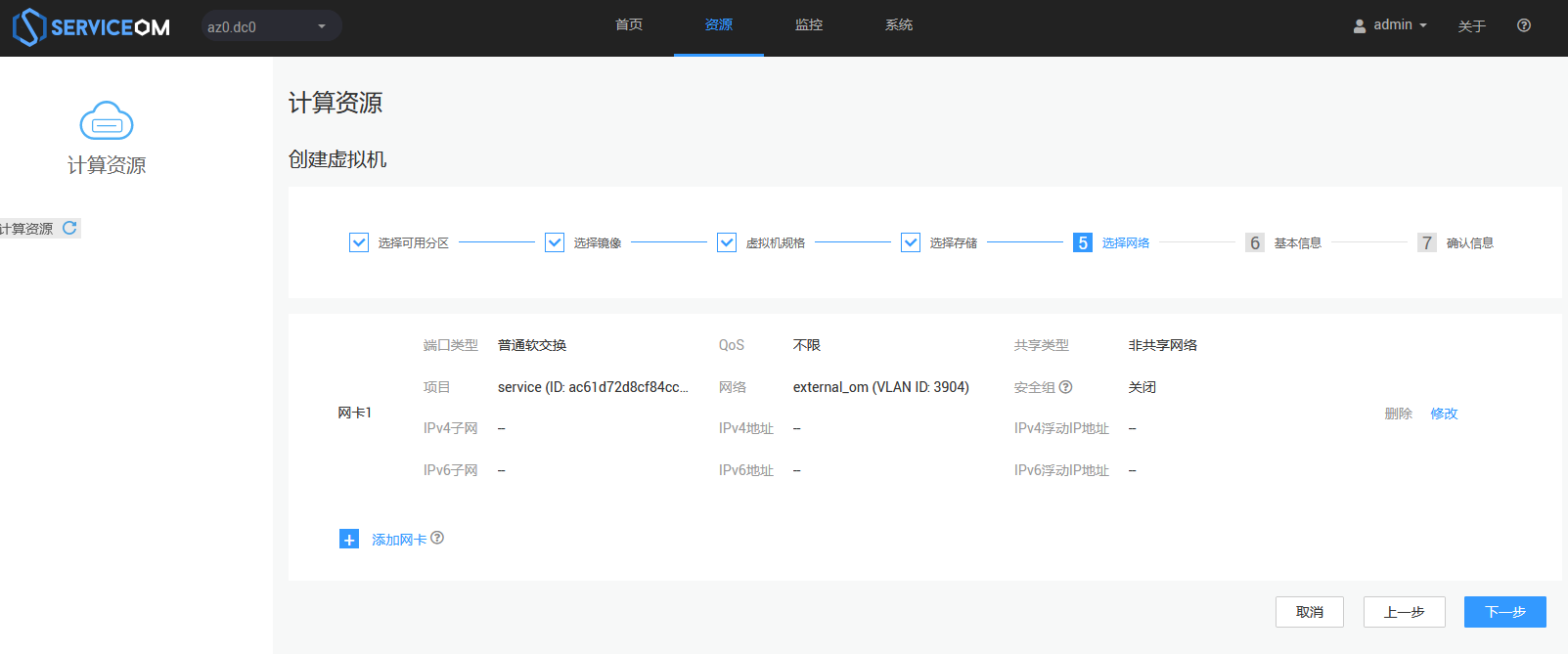

12:修改默认网卡信息 点击修改 项目选择 service 网络选择 external_om 关闭安全组 其它保持默认

关闭安全组

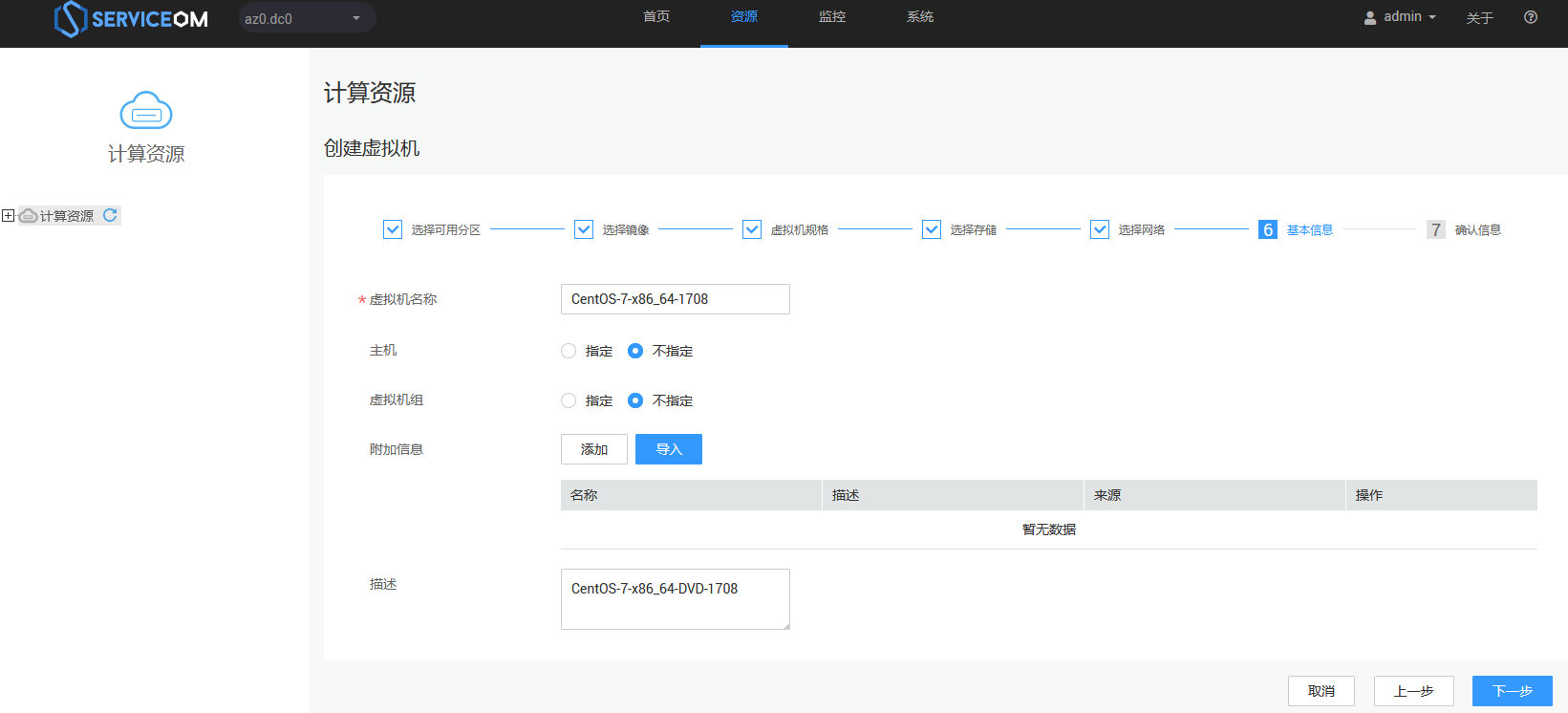

13:设置虚拟机模板名称

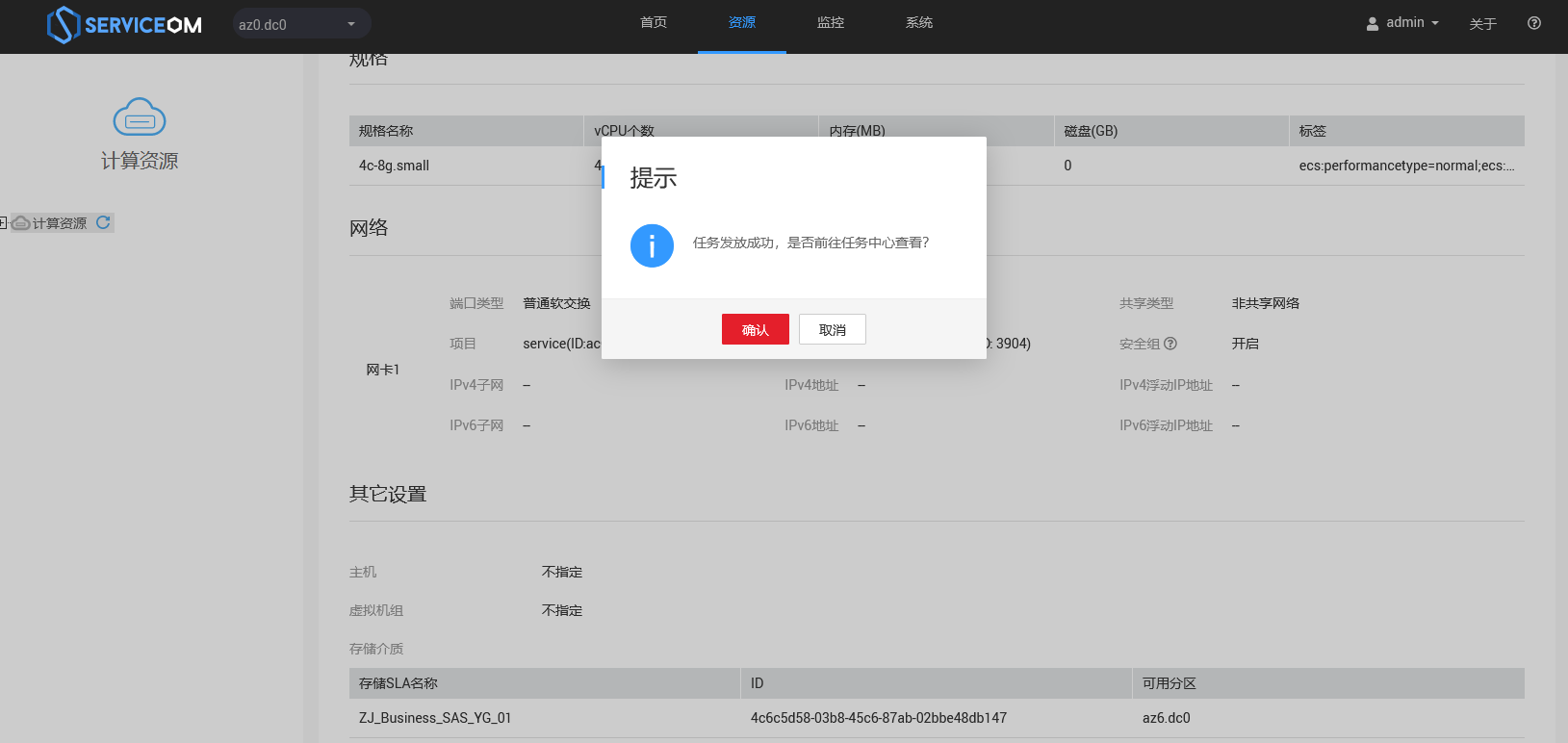

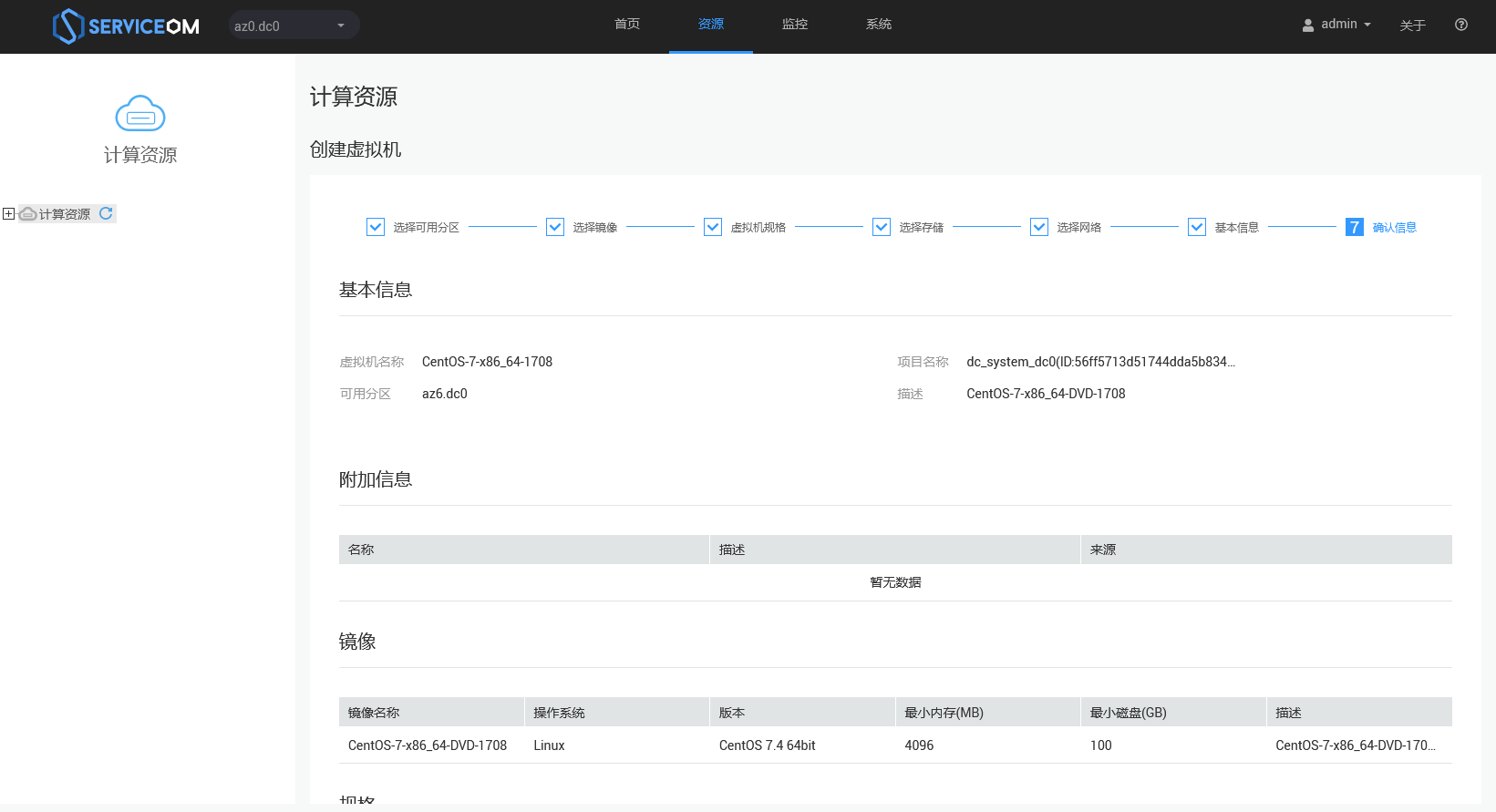

14:最后再次确认所有信息

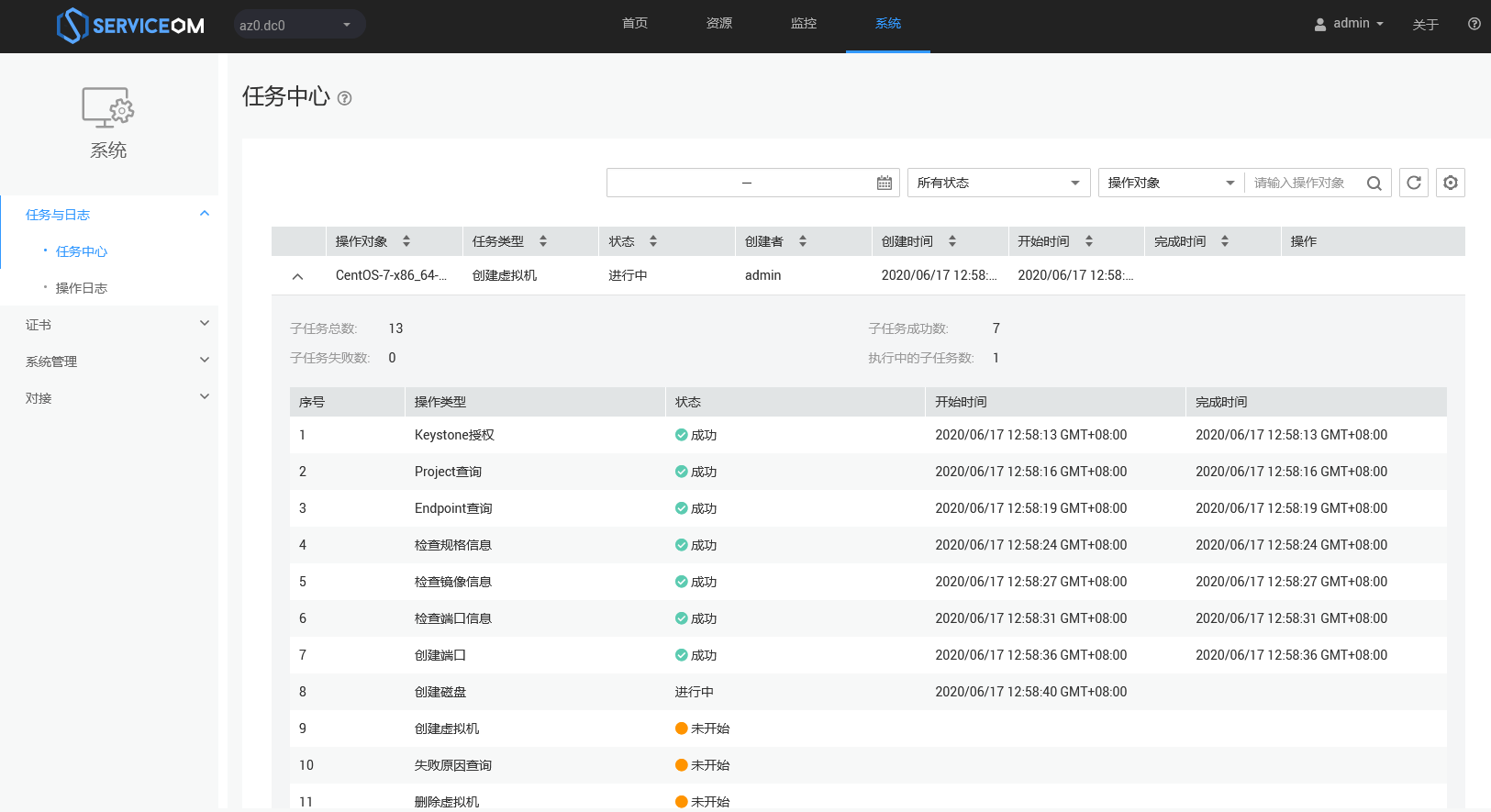

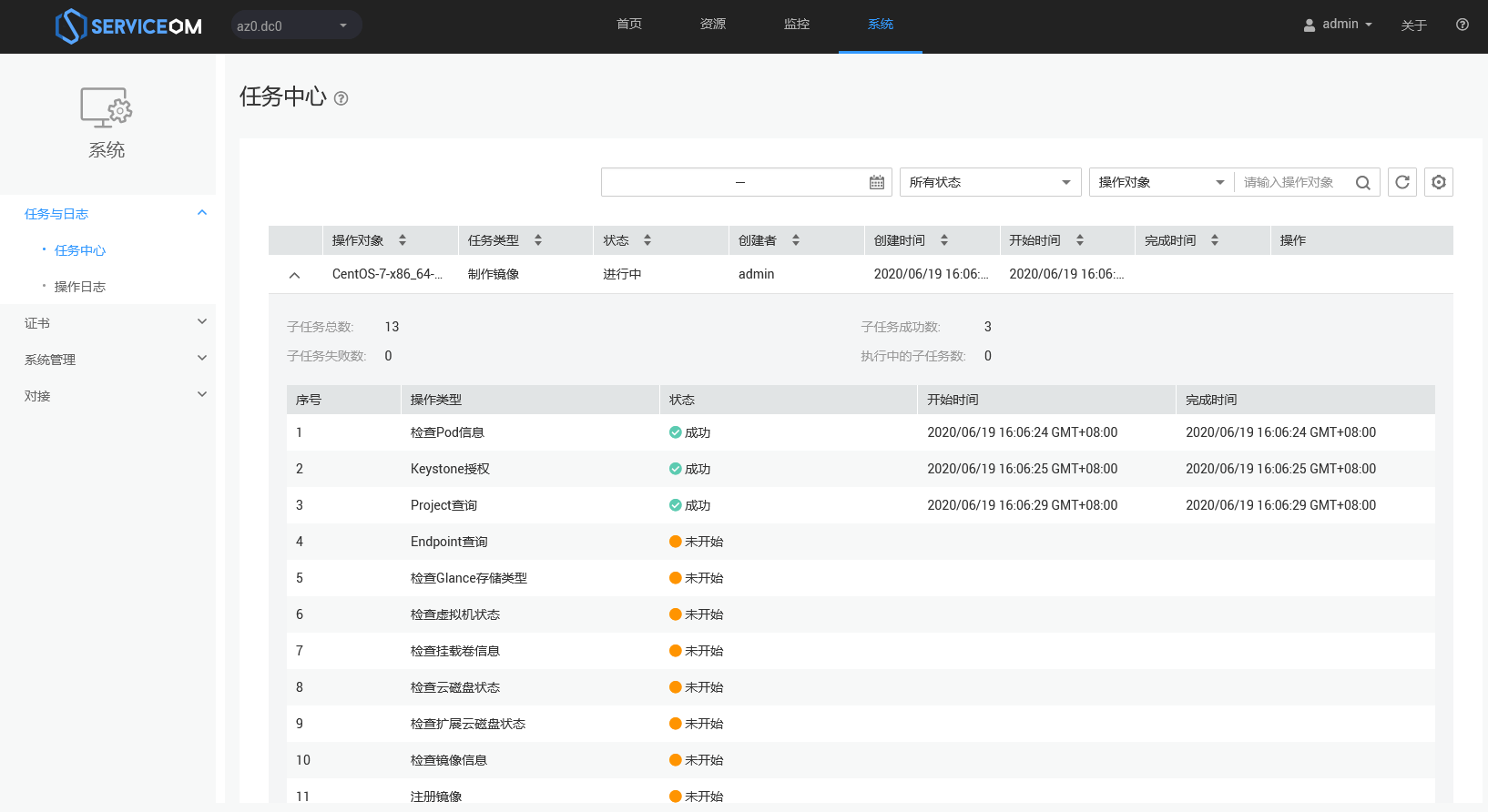

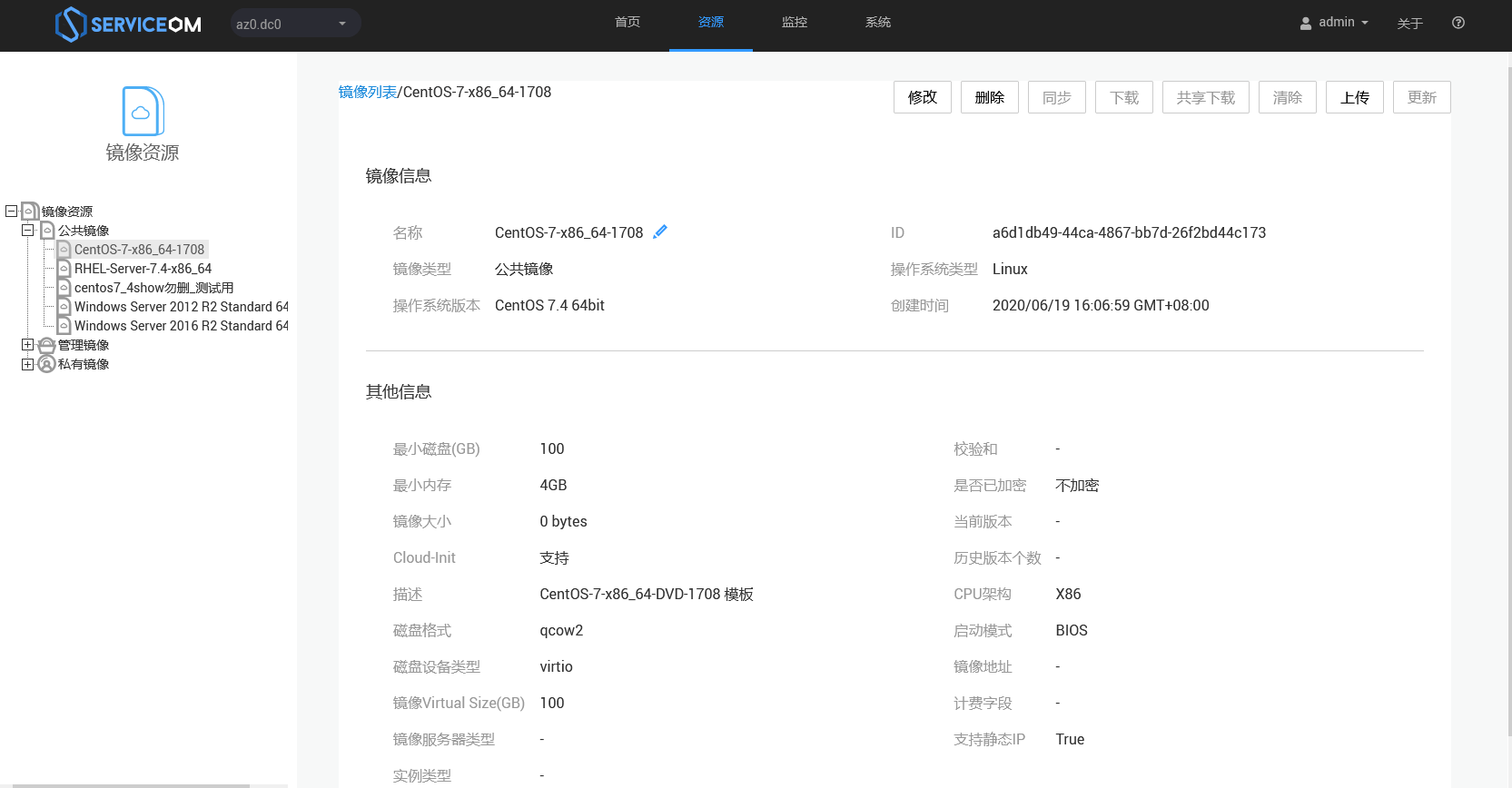

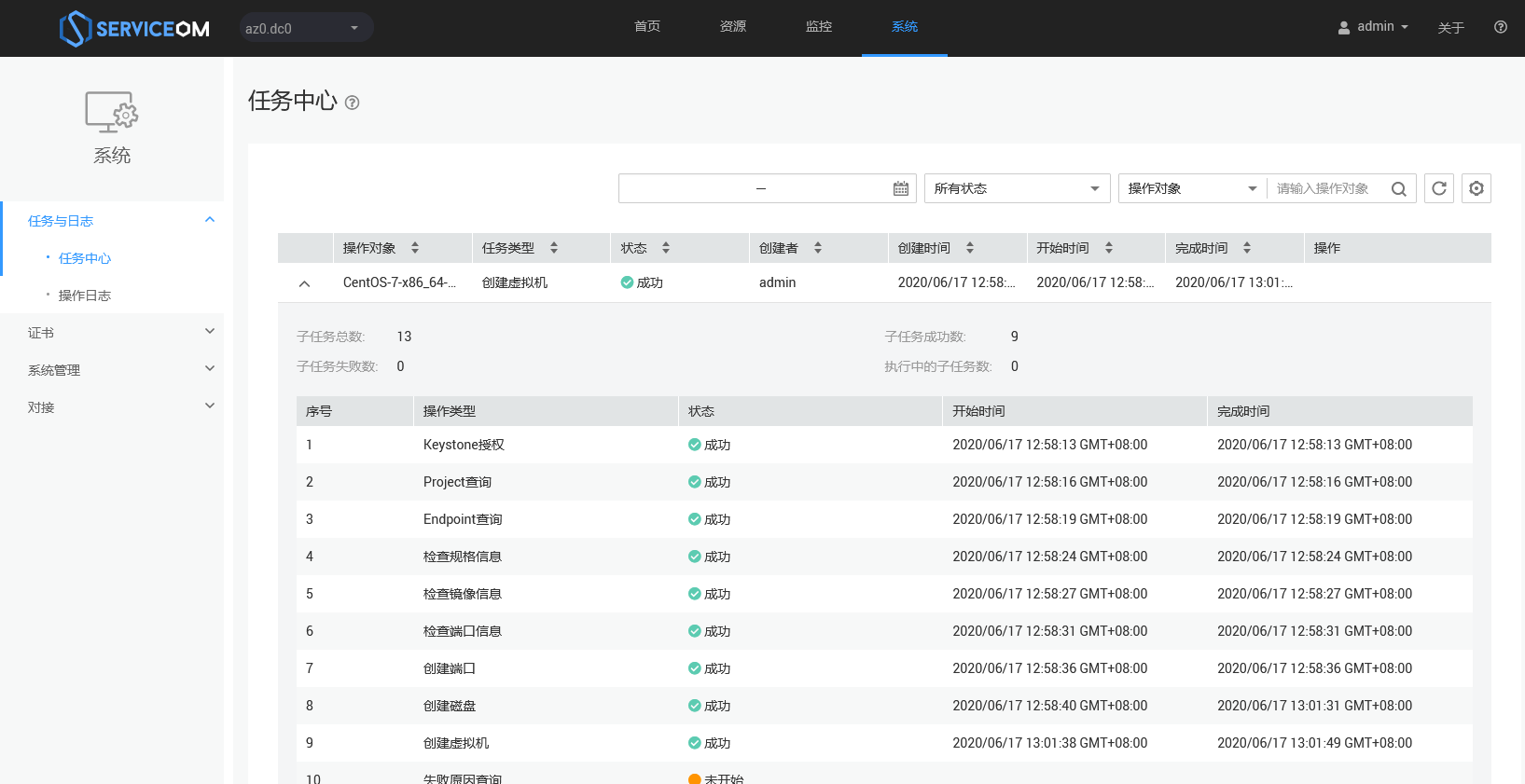

15:确认查看镜像制作日志

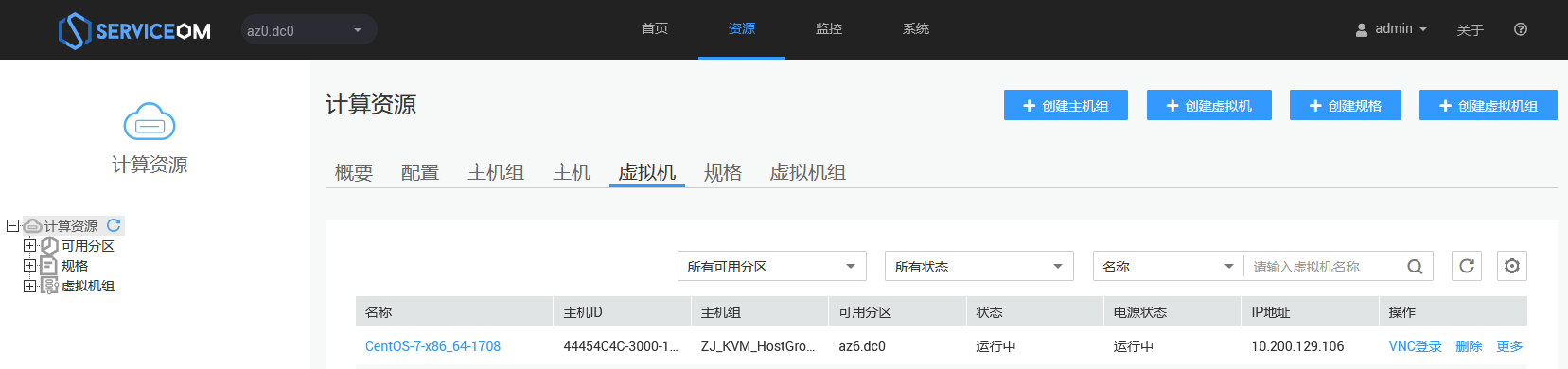

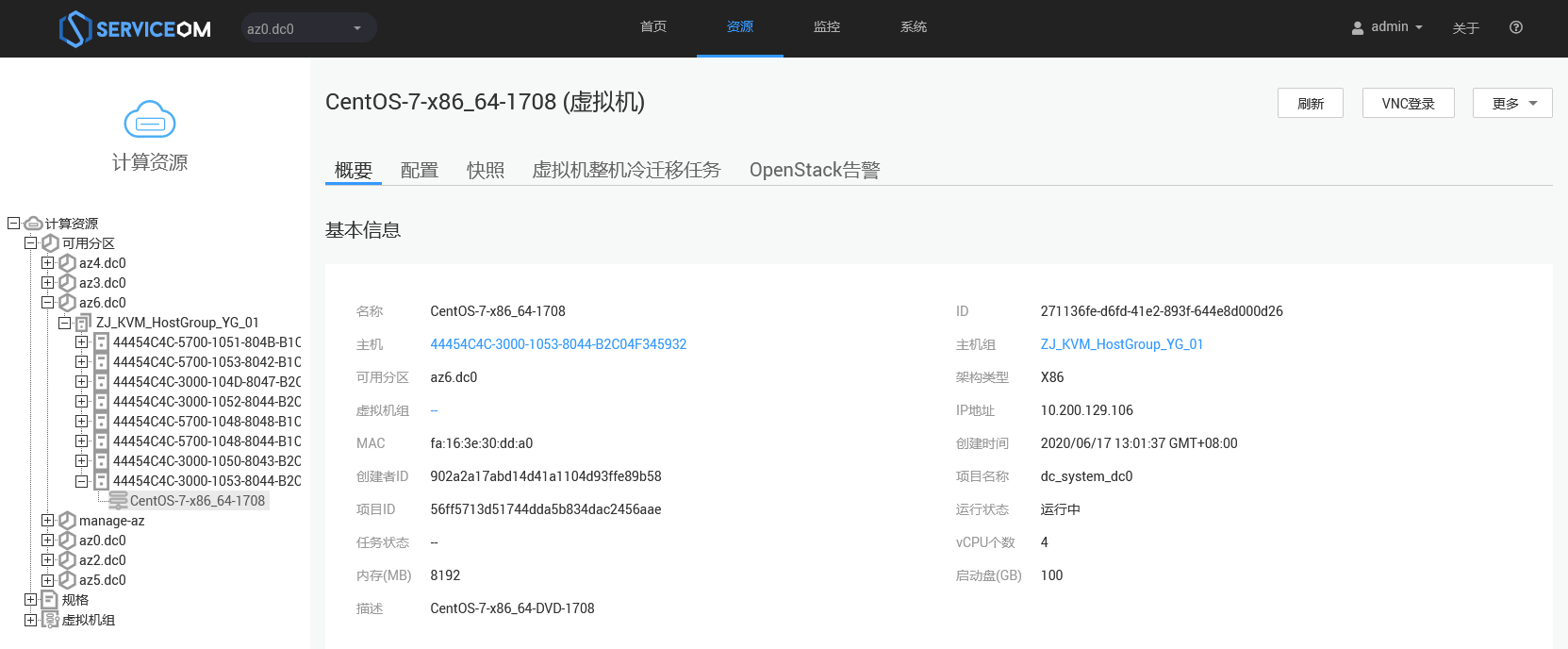

16:点击资源 选择计算机资源 找到刚刚创建的虚拟机 点击它打开它 使用VNC登录虚拟机界面 开始部署系统

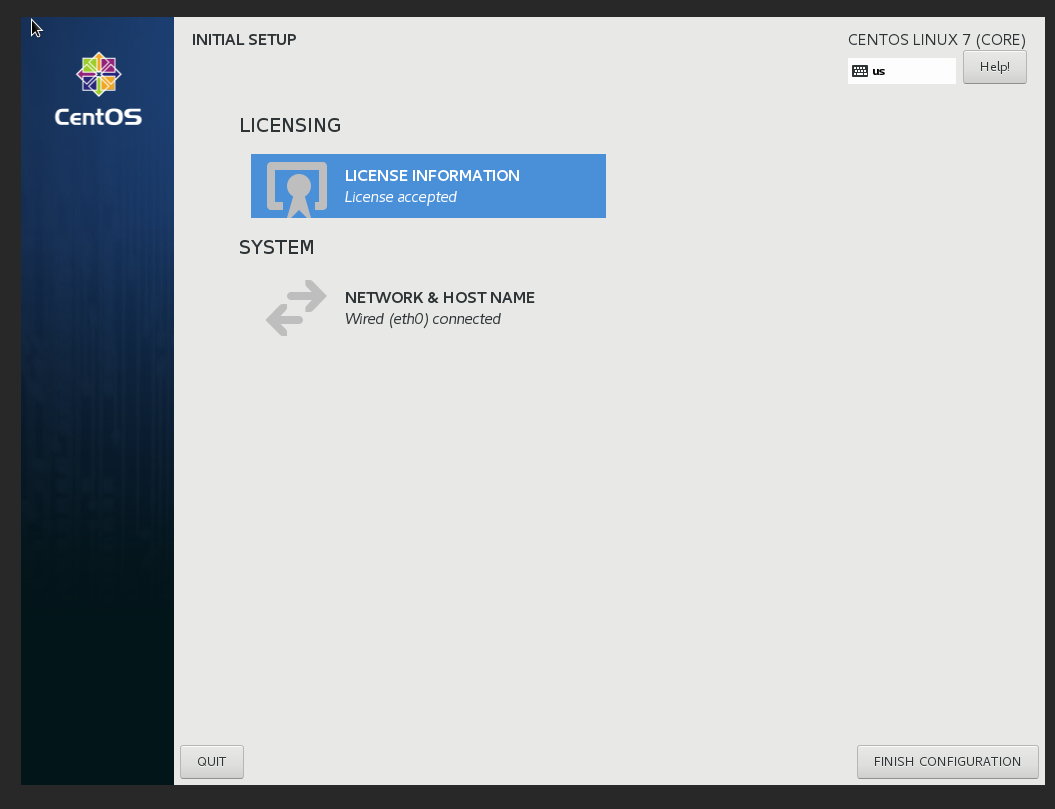

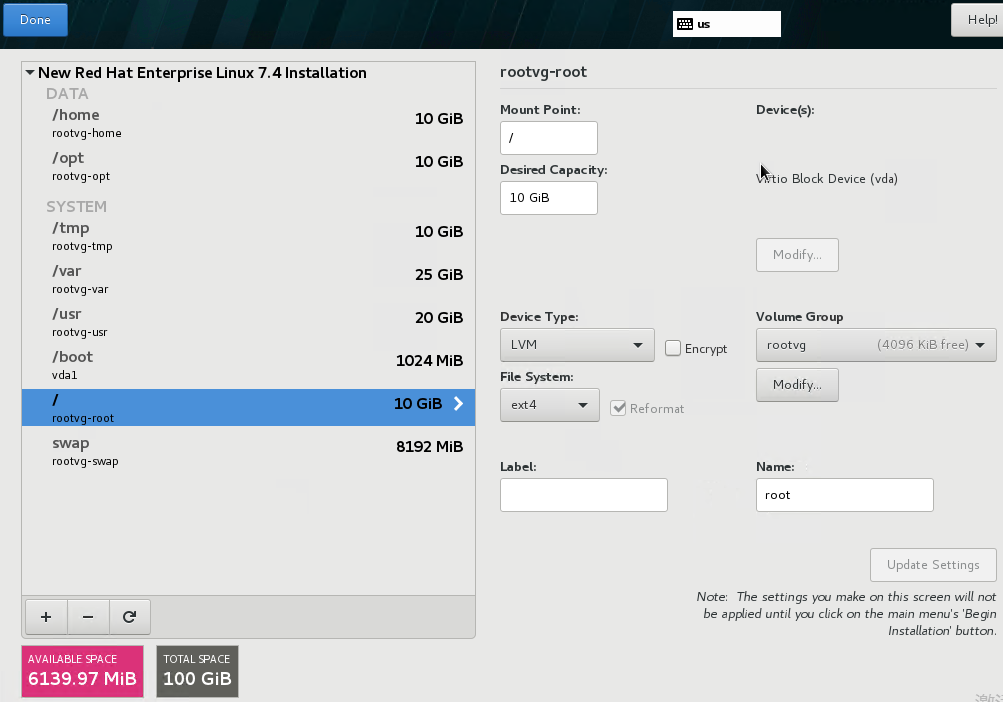

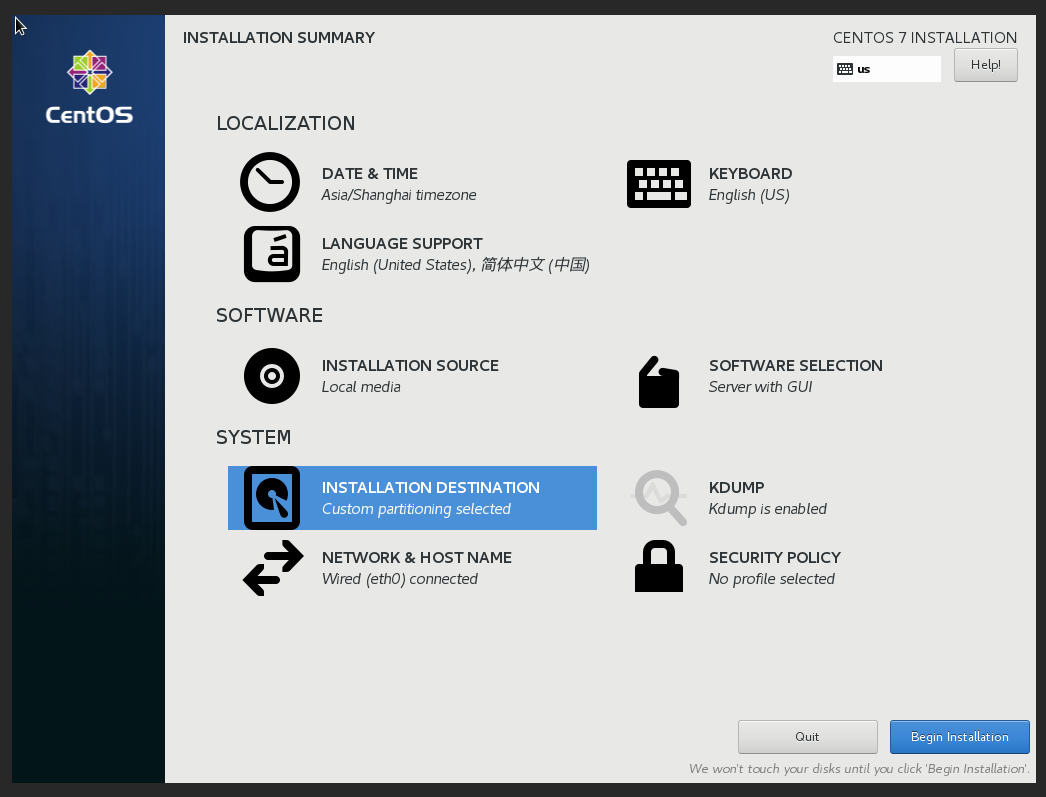

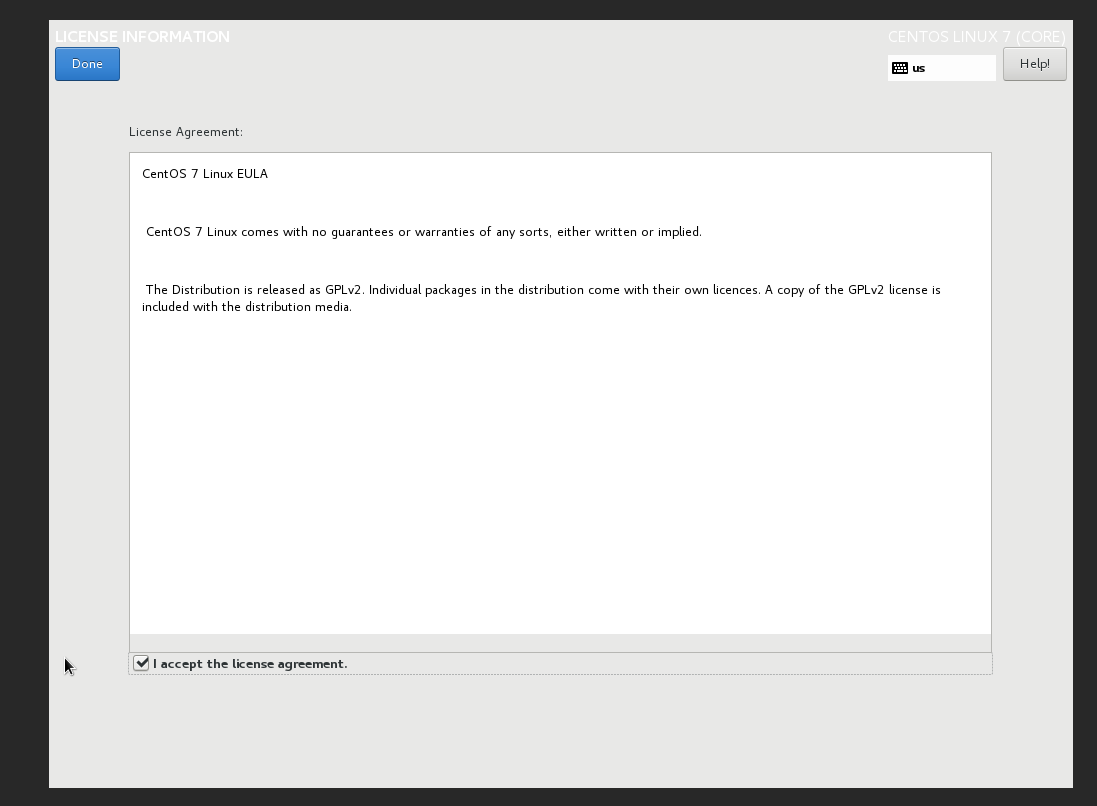

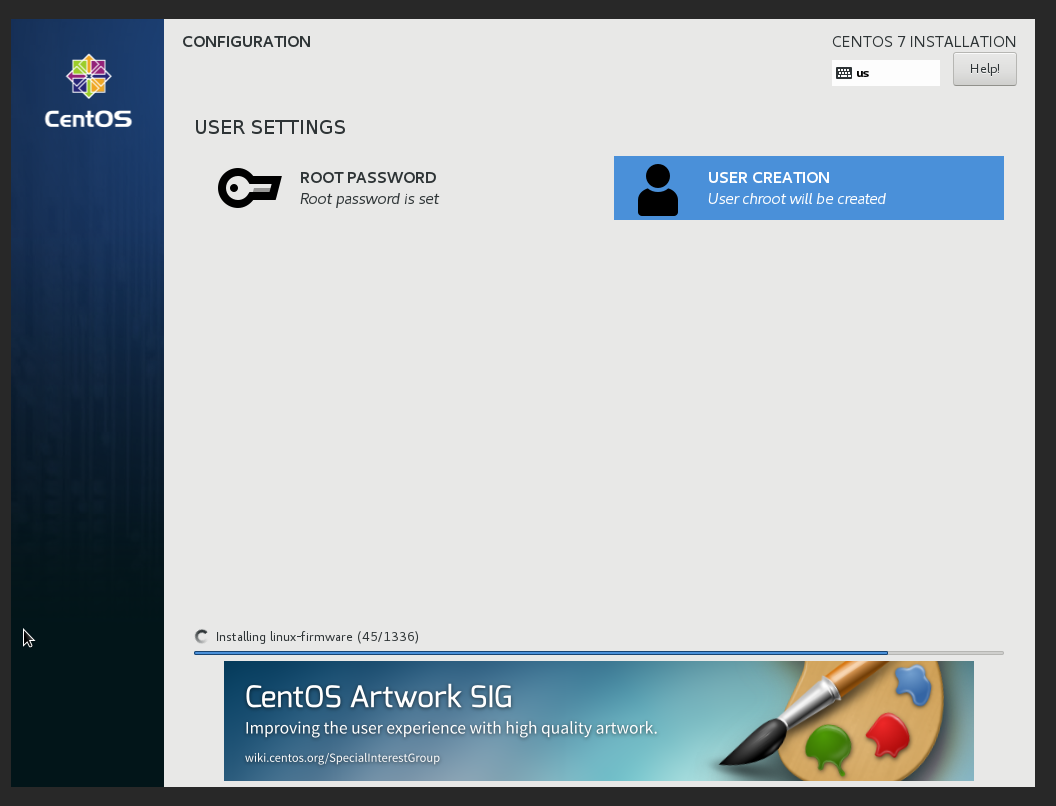

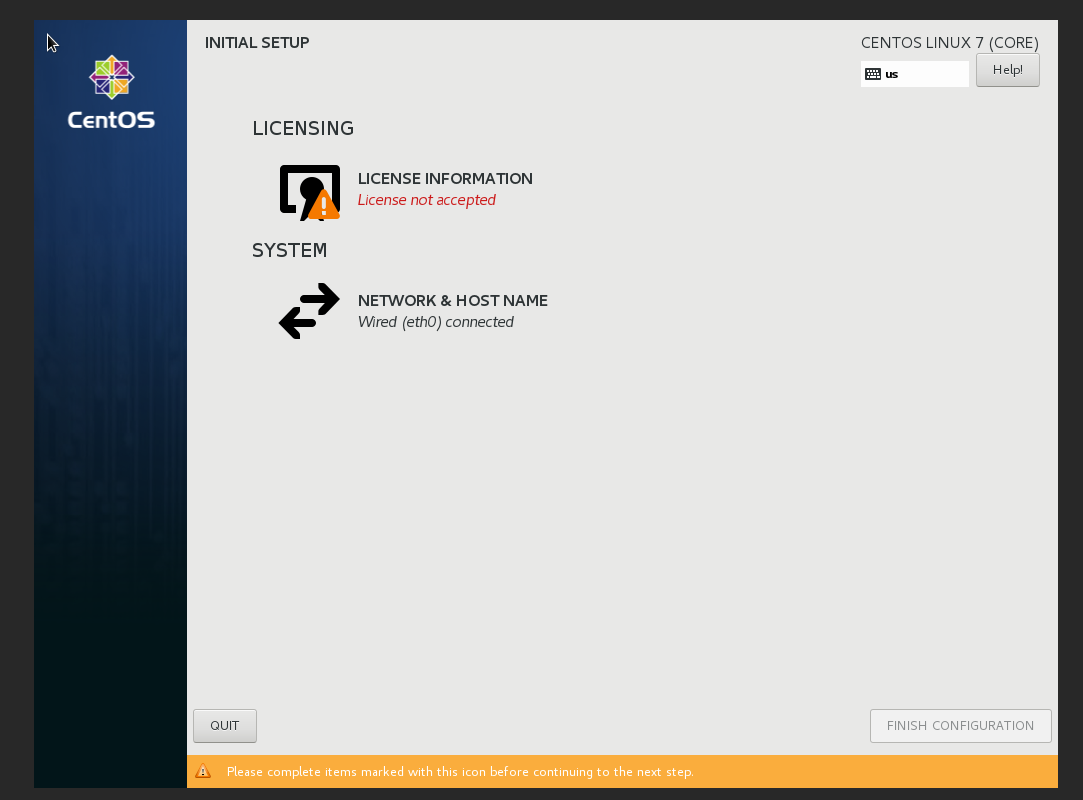

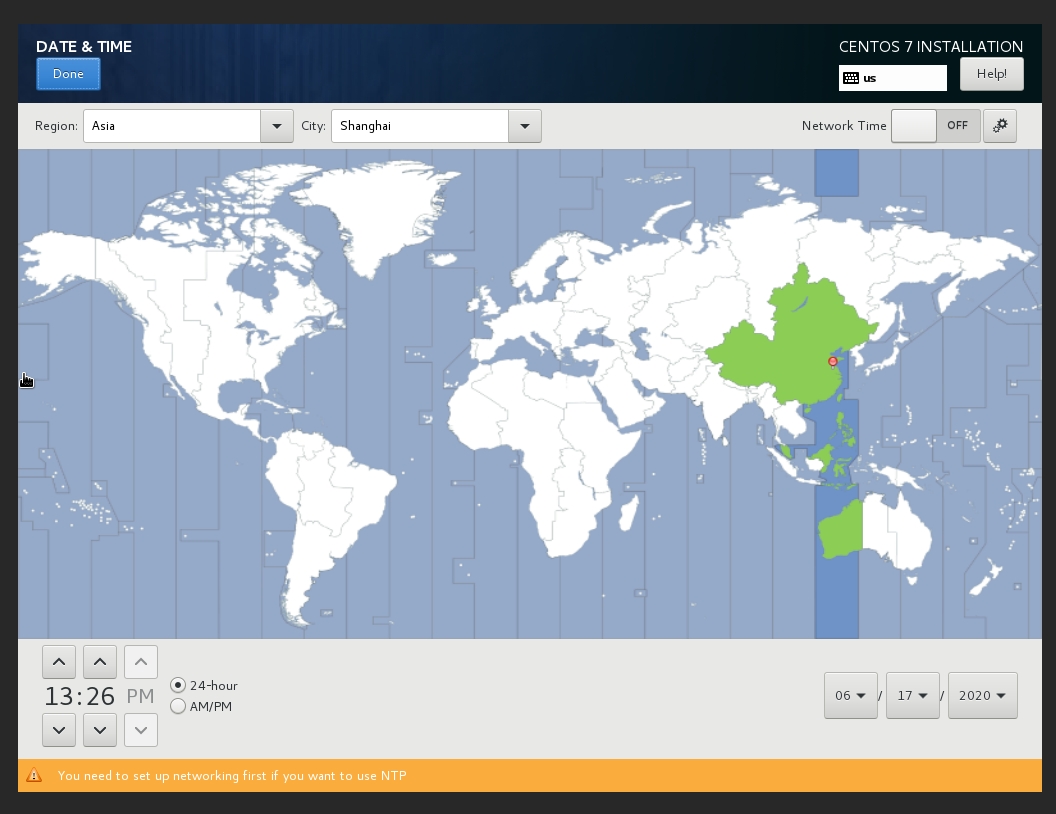

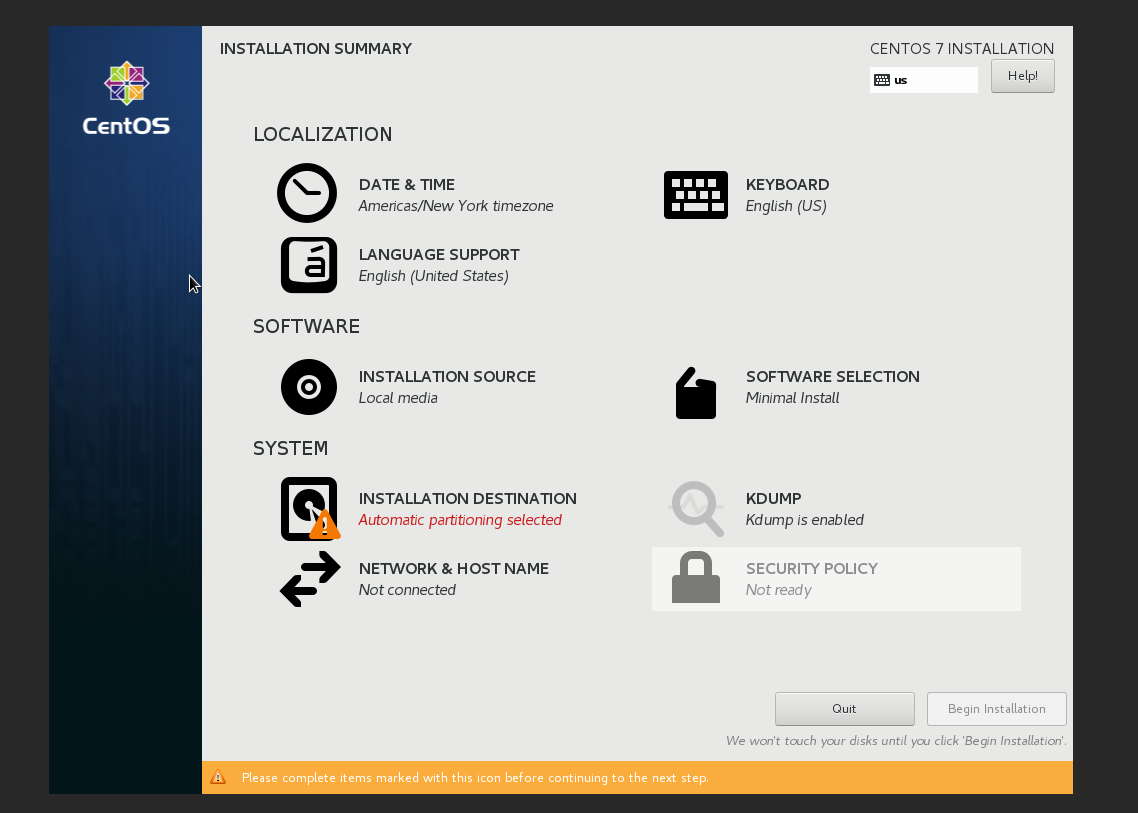

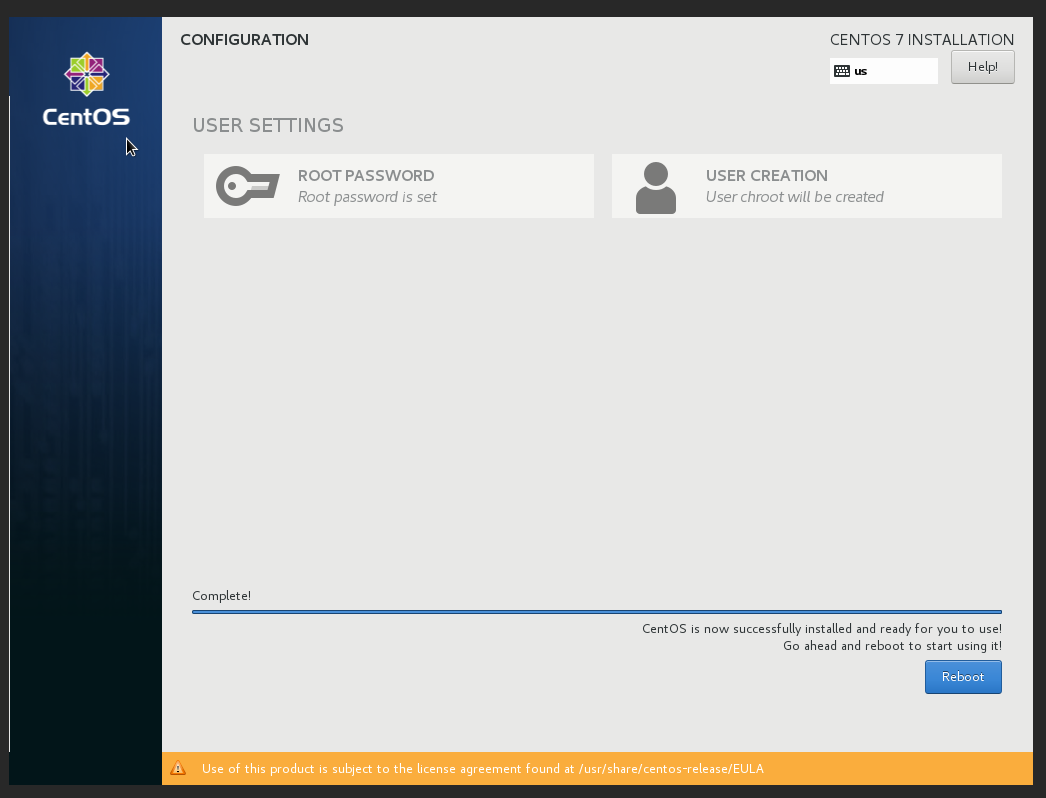

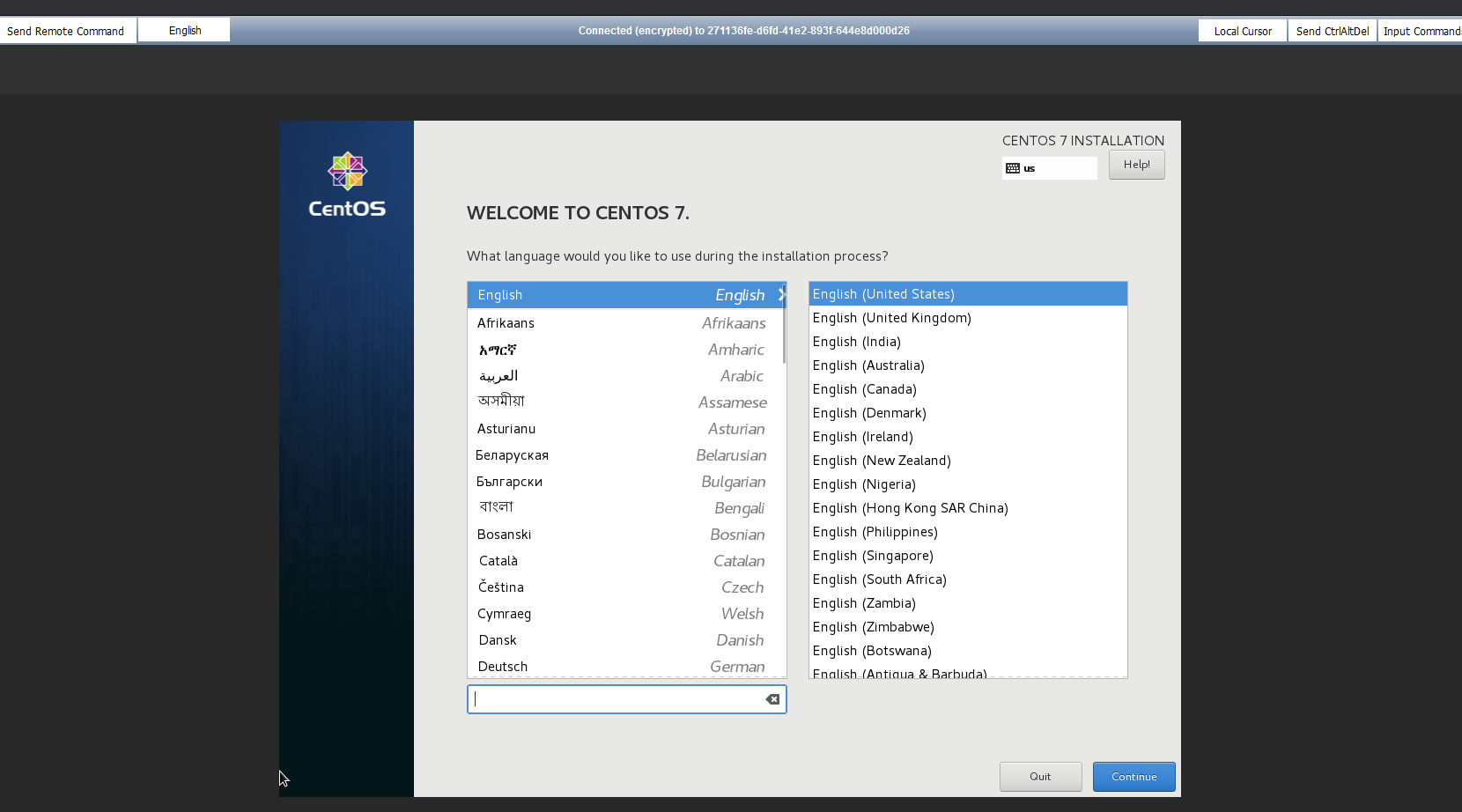

17:语言选择English 开始自定义部署Linux系统

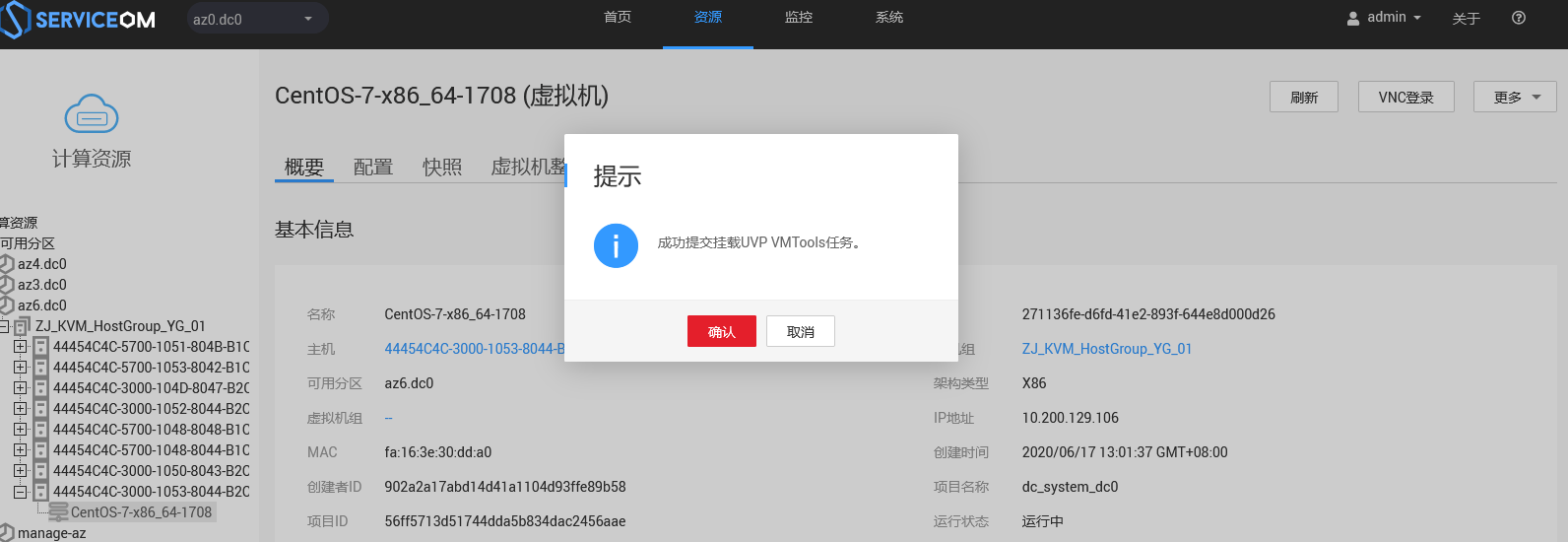

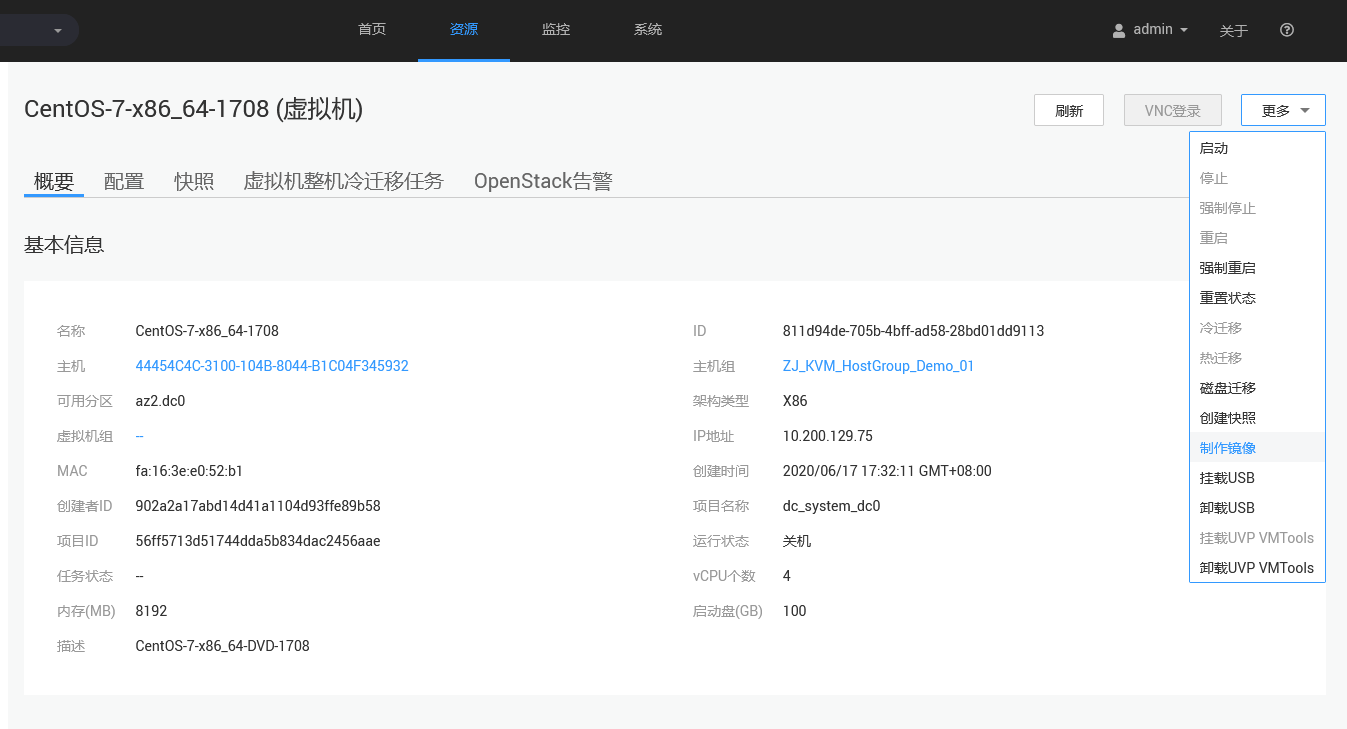

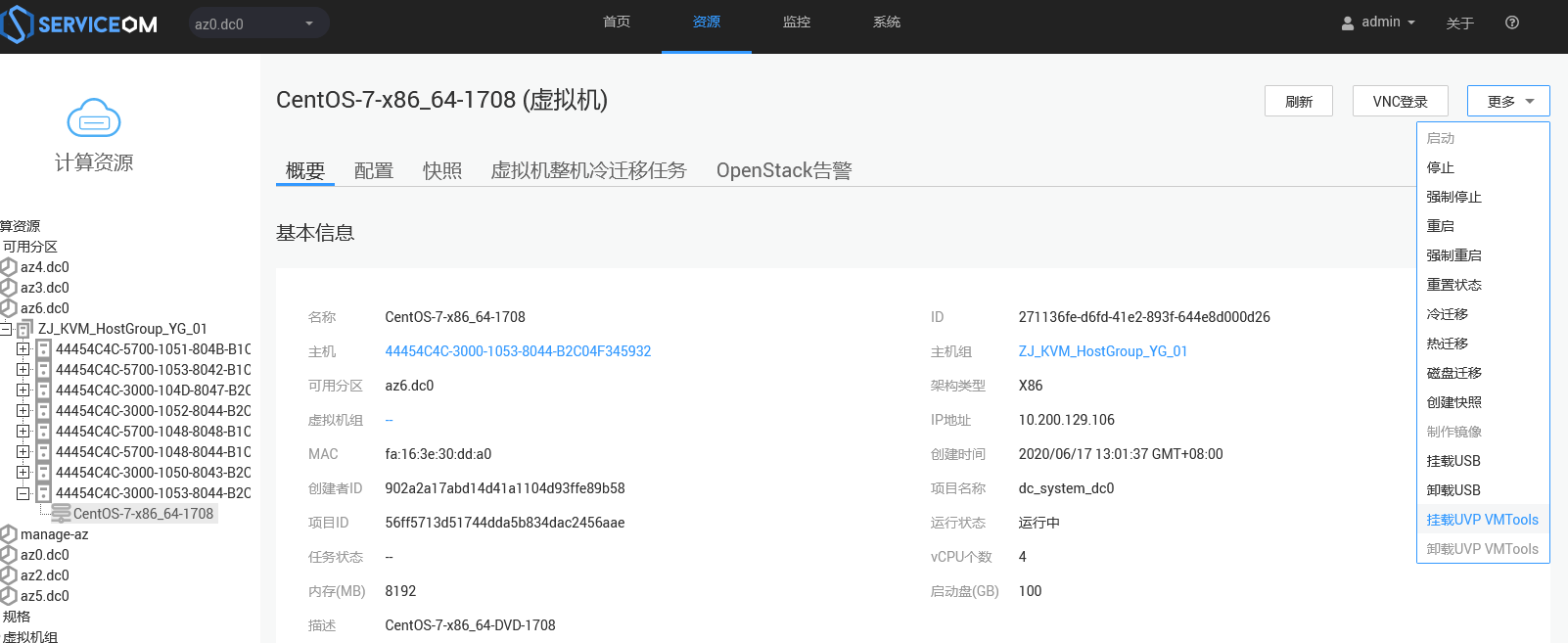

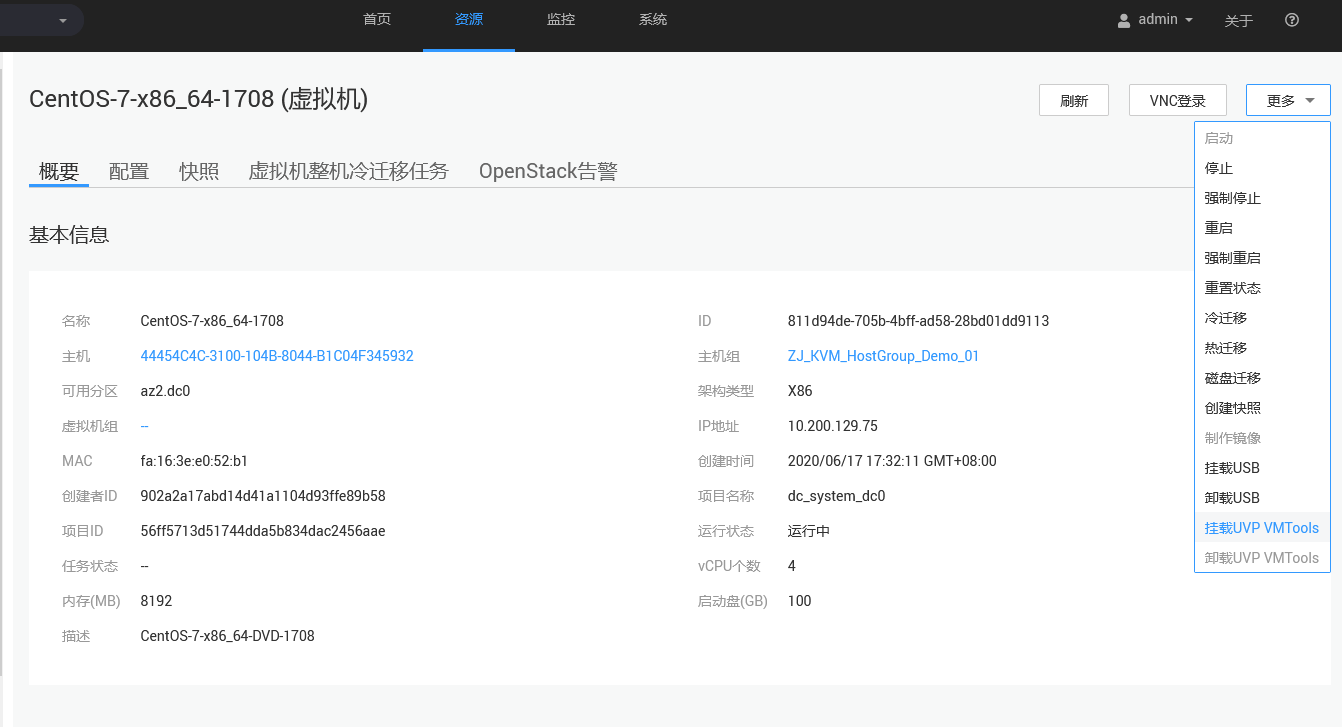

18: 在计算资源里 点击更多挂载UVP VMTools

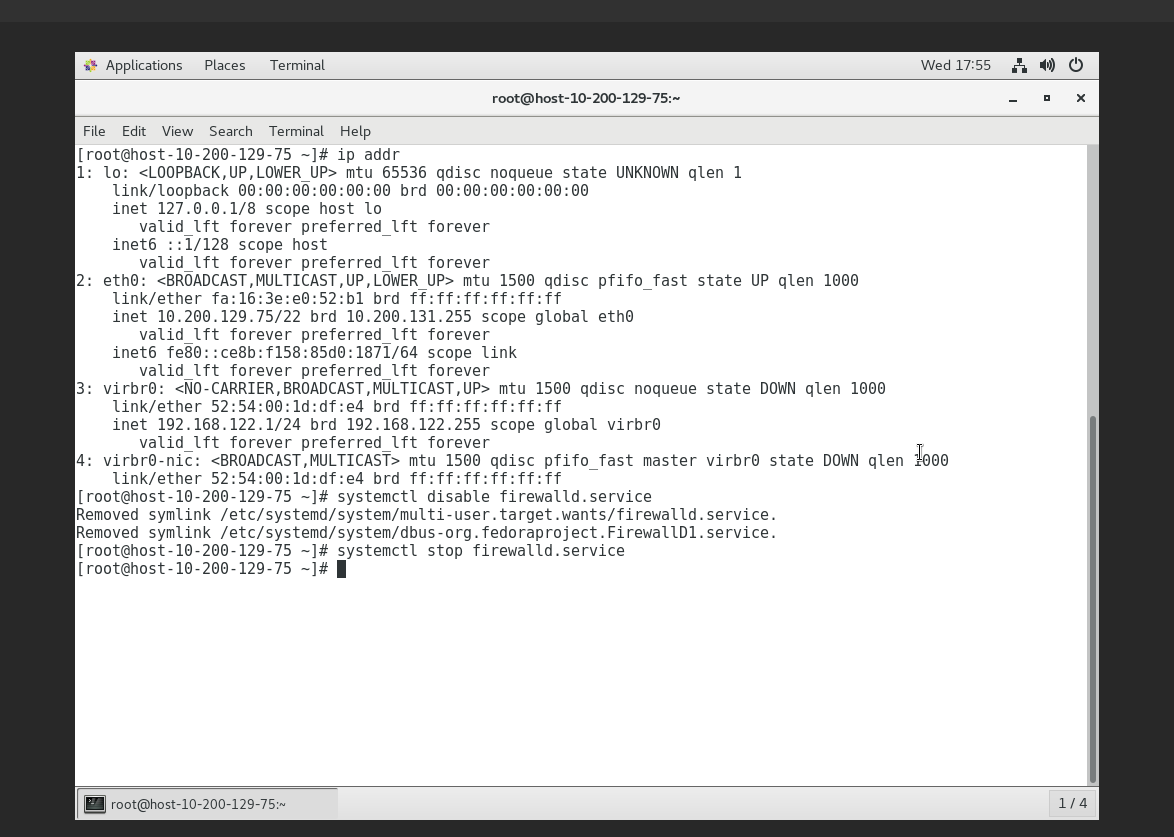

19:系统部署完成后使用终端ssh连接部署UVP VMTools 和 Cloud-Init 先关闭系统防火墙

20:挂载UVP VMTools

21:ssh 终端登录系统 挂载镜像文件

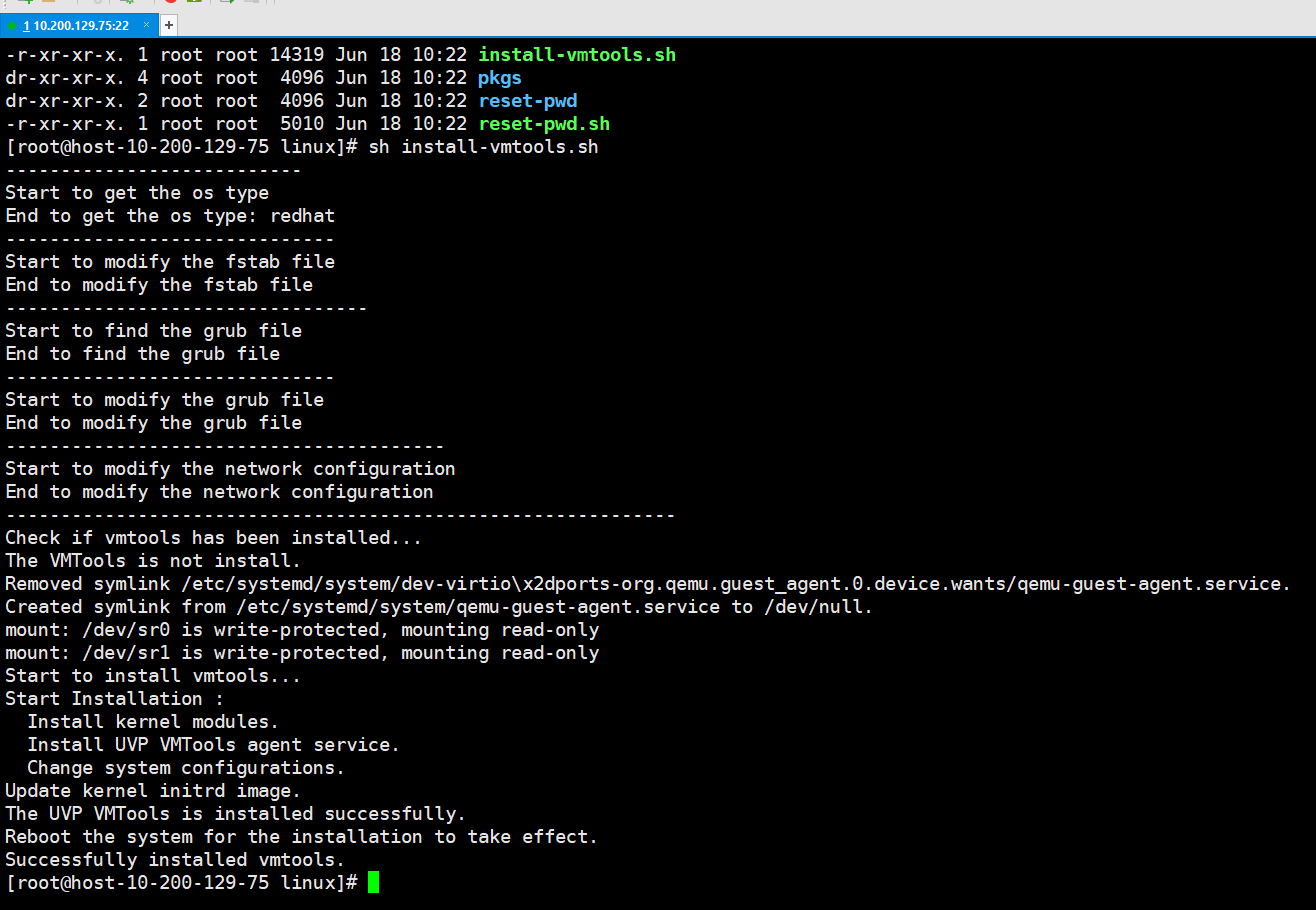

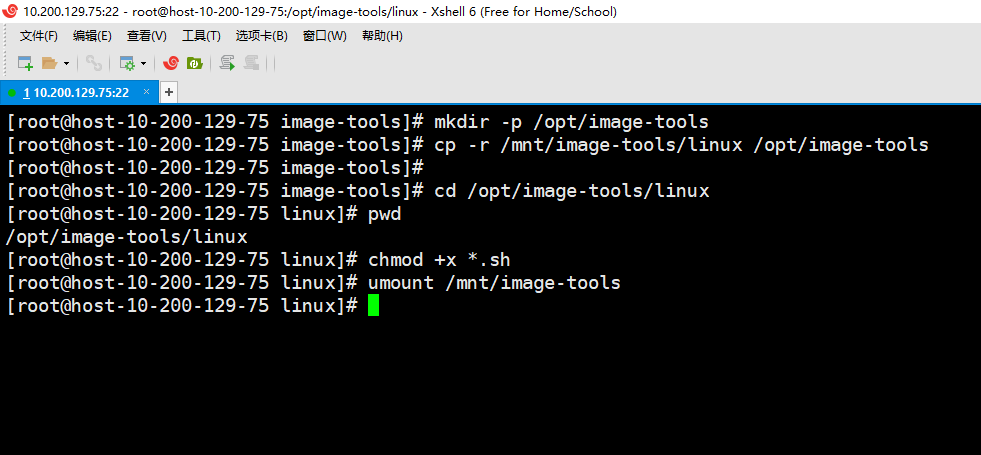

22:安装vmtools

复制uvp vmtools到虚拟机/opt目录下
mkdir -p /mnt/image-tools
mount /dev/sr1 /mnt/image-tools
cd /mnt/image-tools/

mkdir -p /opt/image-tools
cp -r /mnt/image-tools/linux /opt/image-tools
cd /opt/image-tools/linux
chmod +x *.sh
umount /mnt/image-tools
rm -rf /root/vmtools-2.5.0.156.tar.bz2

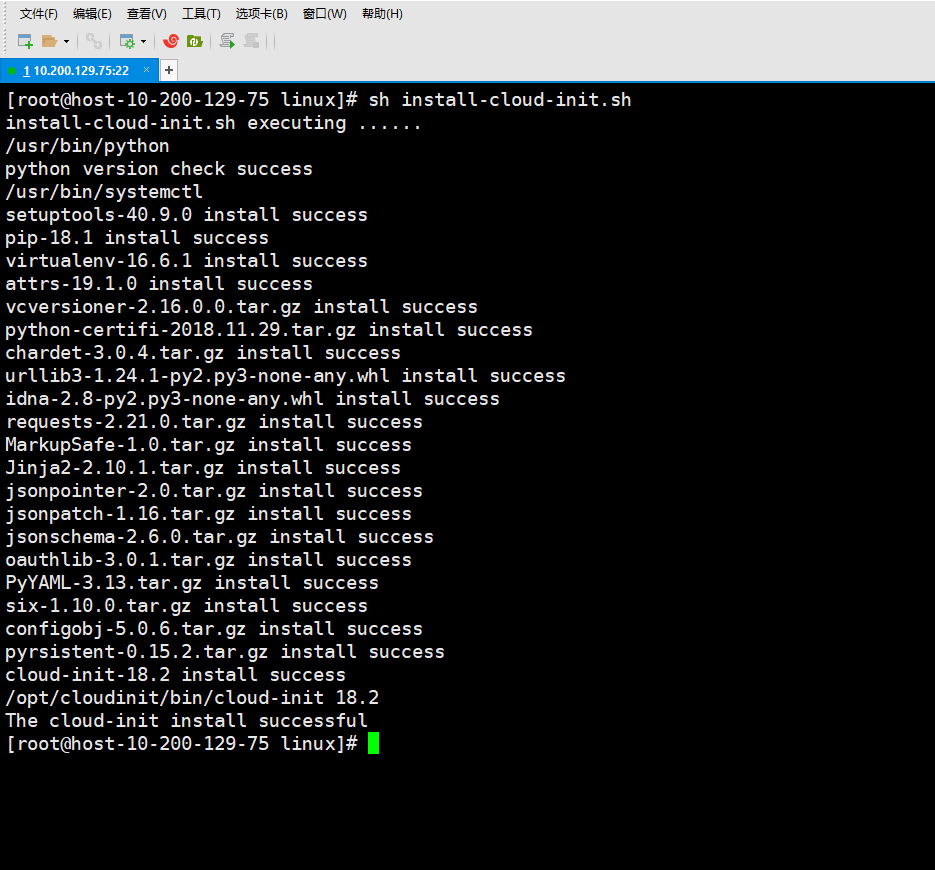

23:安装cloud-init

修改cloud-init文件init.py文件 导致主机名添加 .novalocal
修复文件位置
/opt/cloudinit/lib/python2.7/site-packages/cloud_init-18.2-py2.7.egg/cloudinit/sources

rm -rf init.pyc
rm -rf /var/lib/cloud/
rm -rf /var/log/cloud-init

检查配置文件
cloud-init init —local

修改日志 handlers=cloudLogHandler
vim /etc/cloud/cloud.cfg.d/05_logging.cfg

   [logger_cloudinit]
   level=DEBUG
   qualname=cloudinit
   handlers=cloudLogHandler
   propagate=1

vim /etc/cloud/cloud.cfg

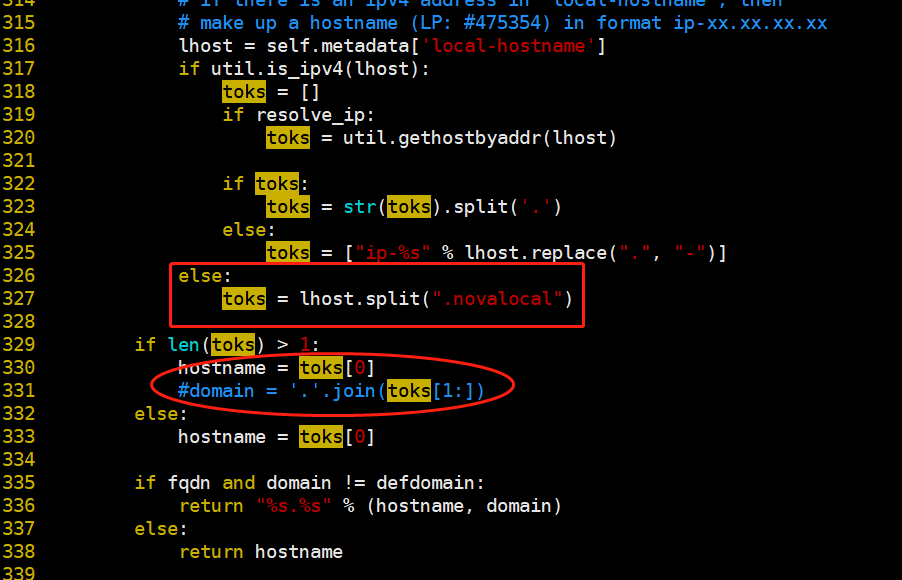

            # make up a hostname (LP: #475354) in format ip-xx.xx.xx.xx
316             lhost = self.metadata['local-hostname']
317             if util.is_ipv4(lhost):
318                 toks = []
319                 if resolve_ip:
320                     toks = util.gethostbyaddr(lhost)
321
322                 if toks:
323                     toks = str(toks).split('.')
324                 else:
325                     toks = ["ip-%s" % lhost.replace(".", "-")]
326             else:
327                 toks = lhost.split(".novalocal")
328
329         if len(toks) > 1:
330             hostname = toks[0]
331             #domain = '.'.join(toks[1:])
332         else:
333             hostname = toks[0]
334
335         if fqdn and domain != defdomain:
336             return "%s.%s" % (hostname, domain)
337         else:
338             return hostname

优化配置文件

[root@uat-devops sources]# cat /etc/cloud/cloud.cfg
# The top level settings are used as module
# and system configuration.
# A set of users which may be applied and/or used by various modules
# when a 'default' entry is found it will reference the 'default_user'
# from the distro configuration specified below
users:
 - name: root
   lock_passwd: false
# If this is set, 'root' will not be able to ssh in and they
# will get a message to login instead as the default $user
disable_root: 0
mount_default_fields: [~, ~, 'auto', 'defaults,nofail', '0', '2']
resize_rootfs_tmp: /dev
ssh_deletekeys:   0
ssh_genkeytypes:  ~
ssh_pwauth: 1
network:
  config: disabled
datasource_list: ['ConfigDrive', 'OpenStack']
manage_etc_hosts: localhost
# This will cause the set+update hostname module to not operate (if true)
preserve_hostname: false
# Example datasource config
# datasource:
#    Ec2:
#      metadata_urls: [ 'blah.com' ]
#      timeout: 5 # (defaults to 50 seconds)
#      max_wait: 10 # (defaults to 120 seconds)
# The modules that run in the 'init' stage
cloud_init_modules:
 - ssh
 - migrator
 - seed_random
 - bootcmd
 - write-files
 - growpart
 - resizefs
 - disk_setup
 - mounts
 - set_hostname
 - update_hostname
 - update_etc_hosts
 - ca-certs
 - rsyslog
 - users-groups
# The modules that run in the 'config' stage
cloud_config_modules:
 - ssh-import-id
 - locale
 - set-passwords
 - ntp
 - timezone
 - disable-ec2-metadata
 - runcmd
# The modules that run in the 'final' stage
cloud_final_modules:
 - package-update-upgrade-install
 - puppet
 - chef
 - mcollective
 - salt-minion
 - rightscale_userdata
 - scripts-vendor
 - scripts-per-once
 - scripts-per-boot
 - scripts-per-instance
 - scripts-user
 - ssh-authkey-fingerprints
 - keys-to-console
 - phone-home
 - final-message
 - power-state-change
# System and/or distro specific settings
# (not accessible to handlers/transforms)
system_info:
   # This will affect which distro class gets used
   distro: centos
   # Default user name + that default users groups (if added/used)
   default_user:
     name: centos
     lock_passwd: True
     gecos: centos Cloud User
     groups: [wheel, adm, systemd-journal]
     sudo: ["ALL=(ALL) NOPASSWD:ALL"]
     shell: /bin/bash
   # Other config here will be given to the distro class and/or path classes
   paths:
      cloud_dir: /var/lib/cloud/
      templates_dir: /etc/cloud/templates/
   ssh_svcname: sshd
#openstack
datasource:
 OpenStack:
 metadata_urls: ['http://169.254.169.254']
 max_wait: 120
 timeout: 50
[root@uat-devops sources]#

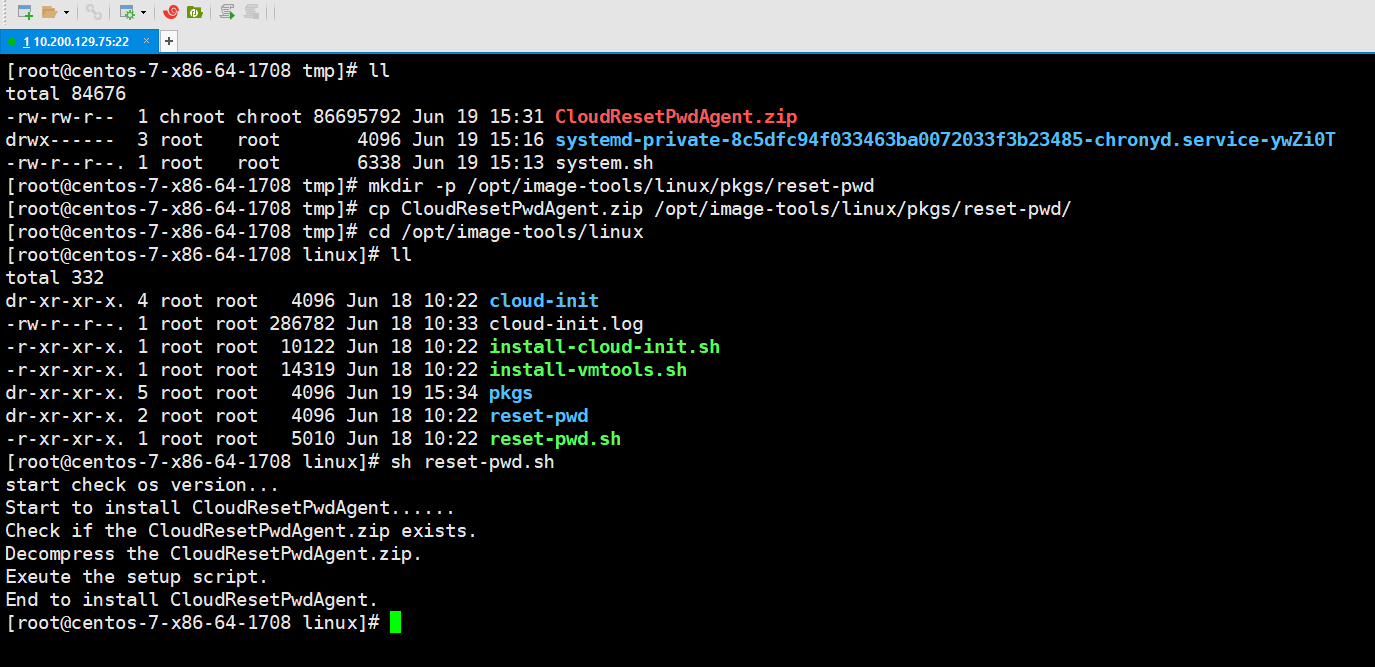

24:安装一键修改密码插件

64位操作系统（X86场景）
12.10.2.8 安装一键式密码重置插件（支撑 X86 架构）

wget http://ap-southeast-1-cloud-reset-pwd.obs.myhwclouds.com/linux/64/reset_pwd_agent/CloudResetPwdAgent.zip

mkdir -p /opt/image-tools/linux/pkgs/reset-pwd
mv CloudResetPwdAgent.zip /opt/image-tools/linux/pkgs/reset-pwd/
cd /opt/image-tools/linux
sh reset-pwd.sh

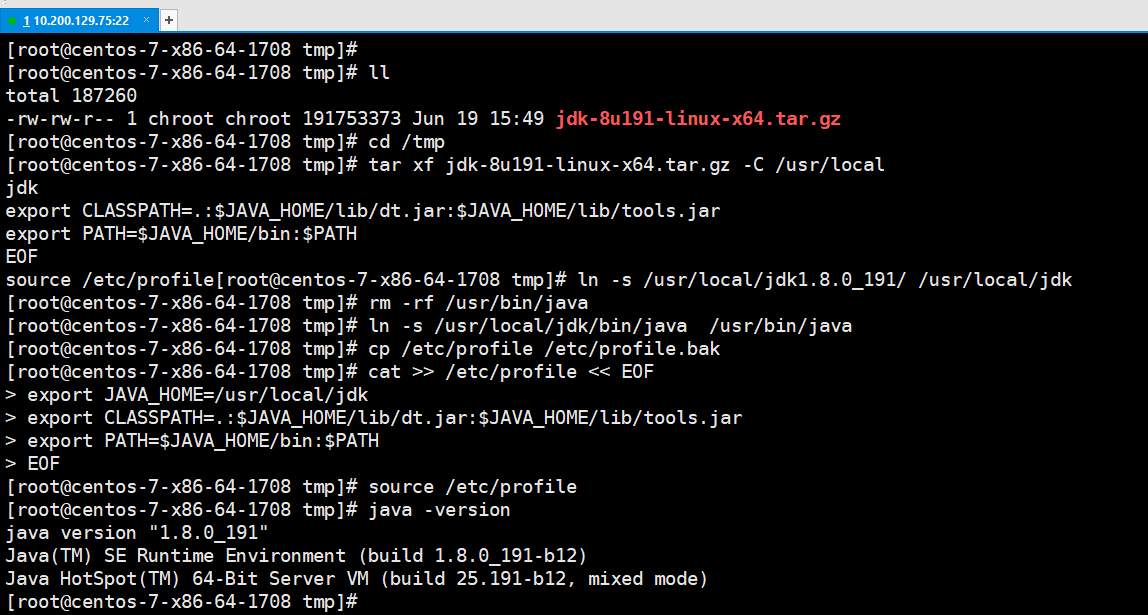

25:部署jdk环境

cd /tmp
tar xf jdk-8u191-linux-x64.tar.gz -C /usr/local
ln -s /usr/local/jdk1.8.0_191/ /usr/local/jdk
rm -rf /usr/bin/java
ln -s /usr/local/jdk/bin/java  /usr/bin/java
cp /etc/profile /etc/profile.bak
cat >> /etc/profile << EOF
export JAVA_HOME=/usr/local/jdk
export CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
export PATH=$JAVA_HOME/bin:$PATH
EOF
source /etc/profile
rm -rf /tmp/jdk-8u191-linux-x64.tar.gz
java -version

26：模板优化

修改网卡信息并清空网络规则70-persistent-ipoib.rules文件
加速虚拟机启动
清空临时文件和历史命令记录 history -c
rm -rf /etc/udev/rules.d/70-persistent-ipoib.rules

datasource:
 OpenStack:
 metadata_urls: ['http://169.254.169.254']
 max_wait: 120
 timeout: 50

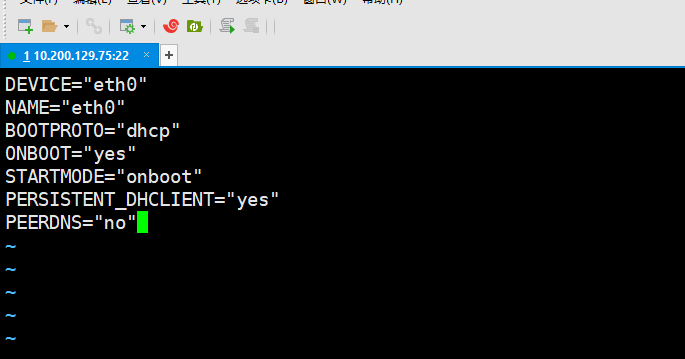

禁用dns自动更新 PEERDNS=”no”

cat << EOF > /etc/sysconfig/network-scripts/ifcfg-eth0
DEVICE=eth0
NAME=eth0
BOOTPROTO=dhcp
ONBOOT=yes
STARTMODE=onboot
PERSISTENT_DHCLIENT=yes
TYPE=Ethernet
PEERDNS=no
PROXY_METHOD=none
BROWSER_ONLY=no
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=no
EOF

删除虚拟网卡
nmcli connection delete virbr0
nmcli device delete virbr0

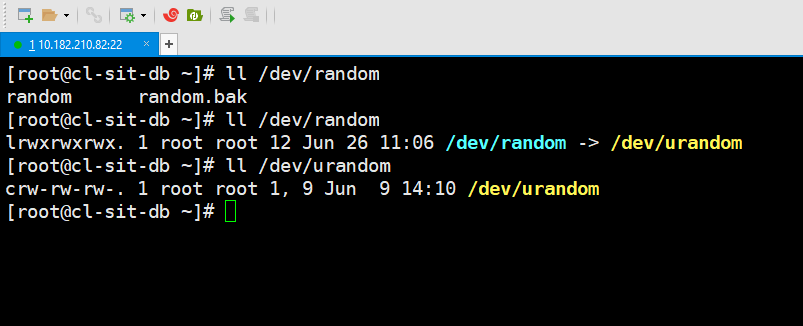

修复jdk bug
mv /dev/random /dev/random.bak;ln -s /dev/urandom /dev/random

27:系统安全加固

#!/bin/bash
##########################################################
##                                                      ##
## Script Name : security for Redhat7.0~7.6             ##
## By：Eren 2020-05-21                                  ##
##                                                      ##
##########################################################
#创建系统运维用户chroot
user=chroot
if ! id $user;then
groupadd -g 700 $user
useradd -g 700 -u 700 -m -G $user $user
echo "chroot:1qaz@WSX" |chpasswd
echo "user $user is created"
fi
#设置系统最小化开机启动项目
for serv in ` systemctl list-unit-files | grep enabled|awk '{print $1}'`;do systemctl disable $serv ;done
for serv in autovt@.service crond.service getty@.service irqbalance.service kdump.service auditd.service microcode.service rsyslog.service sshd.service sysstat.service systemd-readahead-collect.service systemd-readahead-drop.service systemd-readahead-replay.service NetworkManager.service tuned.service lvm2-lvmetad.socket lvm2-lvmpolld.socket default.target cloud-init-local.service cloud-init.service cloud-init.target cloud-final.service vm-agent.service multi-user.target;do systemctl enable $serv;done
#设置单用户启动
systemctl set-default multi-user.target
#删除机器系统重启快捷键
rm -f  /usr/lib/systemd/system/ctrl-alt-del.target
#设置NTP服务器
cp /etc/chrony.conf /etc/chrony.conf.bak
sed -i 's/^server/#server/g' /etc/chrony.conf
sed -i '/#server 3/a\server 10.182.200.100' /etc/chrony.conf
echo "leapsecmode slew" >>/etc/chrony.conf
systemctl restart chronyd
systemctl enable chronyd
#设置文件系统打开文件数
##limits
cat>>/etc/security/limits.conf<<EOF
*                soft    nproc           20480
*               hard    nproc           20480
*               hard    nofile          20480
*               soft    nofile          20480
EOF
sed -i "s/*     soft    nproc         20480/#*          soft    nproc     20480/g" /etc/security/limits.d/20-nproc.conf
#设置系统目录权限
chmod 400 /etc/crontab
chmod 400 /etc/securetty
#chmod 600 /boot/grub/grub.conf
chmod 644 /etc/hosts.allow
chmod 644 /etc/hosts.deny
chmod 600 /etc/inittab
chmod 644 /etc/login.defs
chmod 644 /etc/profile
chmod 644 /etc/bashrc
chmod 744 /usr/bin/consolehelper
#设置系统密码策略
#cp /etc/pam.d/system-auth-ac /etc/pam.d/system-auth-ac.bak
#sed -i '/password    requisite     pam_pwquality.so.*$/s//& minlen=8 ucredit=-1 lcredit=-1 dcredit=-1 ocredit=-1/' /etc/pam.d/system-auth-ac
#sed -i '/password    sufficient    pam_unix.so.*$/s//& remeber=3/' /etc/pam.d/system-auth-ac
#cp /etc/pam.d/password-auth-ac /etc/pam.d/password-auth-ac.bak
#sed -i '/password    requisite     pam_pwquality.so.*$/s//& minlen=8 ucredit=-1 lcredit=-1 dcredit=-1 ocredit=-1/' /etc/pam.d/password-auth-ac
#sed -i '/password    sufficient    pam_unix.so.*$/s//& remeber=3/' /etc/pam.d/password-auth-ac
/sbin/authconfig --passminlen=8 --update
/sbin/authconfig --enablereqdigit --update
/sbin/authconfig --enablereqlower --update
/sbin/authconfig --enablerequpper --update
/sbin/authconfig --enablereqother --update
#设置系统账户有效时间
cp /etc/login.defs /etc/login.defs.bak
sed -ie 's/PASS_MAX_DAYS\t99999/PASS_MAX_DAYS\t90/' /etc/login.defs
sed -ie 's/PASS_MIN_LEN\t5/PASS_MIN_LEN\t8/' /etc/login.defs
#避免记录不存在用户的登录信息，避免用户误输入导致密码泄露
echo "LOG_UNKFAIL_ENAB        yes" >> /etc/login.defs
#配置用户密码尝试次数为6次，超过6次后登录会话自动登出，避免自动连续暴力破解
echo "LOGIN_RETRIES           6"  >> /etc/login.defs
#记录用户上次登录时间，用户登录时给予提示
echo "LASTLOG_ENAB           yes" >> /etc/login.defs
#ssh访问时超出密码失败次数后锁定用户5分钟
cp /etc/pam.d/login /etc/pam.d/login.bak
sed -i '/#%PAM/a\auth     required     pam_tally2.so   deny=6  unlock_time=300' /etc/pam.d/login
cp /etc/pam.d/sshd /etc/pam.d/sshd.bak
sed -i '/#%PAM/a\auth     required     pam_tally2.so   deny=6  unlock_time=300' /etc/pam.d/sshd
##sshd
cp /etc/ssh/sshd_config /etc/ssh/sshd_config.bak
sed -i 's/^PermitRootLogin yes/PermitRootLogin no/' /etc/ssh/sshd_config
sed -i '/#Banner none/a\Banner /etc/issue.net' /etc/ssh/sshd_config
sed -i 's/^#UseDNS no/UseDNS no/' /etc/ssh/sshd_config
#sed -i 's/^UsePAM yes/UsePAM no/' /etc/ssh/sshd_config
sed -i 's/^#Port 22/Port 22/' /etc/ssh/sshd_config
echo 'Authorized users only! All activity may be monitored and reported!'> /etc/motd
cp /etc/issue /etc/issue_`date +\%Y\%m\%d`
cp /etc/issue.net /etc/issue.net_`date +\%Y\%m\%d`
echo 'Be sure you are authorized to access this system!' > /etc/issue
echo 'Be sure you are authorized to access this system!' > /etc/issue.net
#profile
echo "export TMOUT=600" >> /etc/profile
echo 'export HISTTIMEFORMAT="%F %T `whoami` " ' >>/etc/profile
sed -i "s/export HISTFILESIZE=.*/export HISTFILESIZE=10000/g" /etc/profile
#关闭SELINUX
cp /etc/sysconfig/selinux /etc/sysconfig/selinux.bak
sed -i 's/SELINUX=enforcing/SELINUX=disabled/' /etc/selinux/config
#rc-local
chmod +x /etc/rc.d/rc.local
systemctl enable rc-local
#kernel参数调优
cat>>/etc/sysctl.conf<<EOF
net.ipv4.conf.all.arp_ignore = 0
net.ipv4.conf.default.arp_ignore = 0
net.ipv4.conf.all.arp_filter = 0
net.ipv4.conf.default.arp_filter = 0
net.ipv4.conf.all.rp_filter = 1
net.ipv4.conf.all.log_martians =0
net.ipv4.conf.default.log_martians = 0
net.ipv4.conf.all.promote_secondaries = 0
net.ipv4.ip_no_pmtu_disc = 1
net.ipv4.conf.all.forwarding = 0
net.ipv4.conf.default.forwarding = 0
Net.ipv4.icmp_echo_ignore_broadcasts = 1
net.ipv4.conf.all.accept_source_route = 0
net.ipv4.conf.default.accept_source_route = 0
net.ipv4.conf.all.accept_redirects = 0
net.ipv4.conf.default.accept_redirects = 0
net.ipv4.tcp_timestamps = 0
net.ipv4.icmp_ignore_bogus_error_responses = 1
net.ipv4.conf.all.proxy_arp = 0
net.ipv4.conf.default.proxy_arp = 0
net.ipv4.tcp_max_syn_backlog = 4096
net.ipv4.tcp_syncookies = 1
net.ipv4.tcp_fin_timeout = 60
net.ipv4.ip_forward = 0
net.ipv4.tcp_keepalive_time = 150
net.ipv4.tcp_keepalive_probes = 5
net.ipv4.tcp_keepalive_intvl = 6
EOF
sysctl -p &>/dev/null
#rsyslog
echo "*.err;auth.info        /var/adm/messages" >>/etc/rsyslog.conf
systemctl restart sshd.service
echo "------ Modify is OK ------"

28:升级openssh

#!/bin/bash
###By：Eren 2020-05-26
cd /tmp/openssh
rm -rf /etc/yum.repos.d/*.repo
yum -y localinstall /tmp/openssh/*.rpm
cd /tmp/openssh/openssl-1.1.1g/
./config --prefix=/usr/local/ssl shared
make && make install
echo "/usr/local/ssl/lib" >> /etc/ld.so.conf
/sbin/ldconfig -v
mv /usr/bin/openssl  /usr/bin/openssl.old
ln -s /usr/local/ssl/bin/openssl  /usr/bin/openssl
ln -s /usr/local/ssl/include/openssl  /usr/include/openssl
ln -s /usr/local/ssl/lib/libssl.so /usr/local/lib64/libssl.so
strings /usr/local/lib64/libssl.so |grep OpenSSL
/usr/bin/openssl version
cp /etc/pam.d/sshd  /etc/pam.d/sshd.old
cp /etc/ssh/sshd_config /etc/ssh/sshd_config.old
cd /tmp/openssh/openssh-8.3p1/
install -v -m700 -d /var/lib/sshd
chown -v root:sys /var/lib/sshd
./configure --prefix=/usr --sysconfdir=/etc/ssh --with-md5-passwords --with-pam --with-zlib --with-openssl-includes=/usr/local/ssl/lib --with-privsep-path=/var/lib/sshd --with-ssl-dir=/tmp/openssh/openssl-1.1.1g
make && make install
cat /tmp/openssh/sshd_config >/etc/ssh/sshd_config
chmod 600 /etc/ssh/ssh_host_rsa_key
chmod 600 /etc/ssh/ssh_host_ecdsa_key
chmod 600 /etc/ssh/ssh_host_ed25519_key
rm -rf /usr/lib/systemd/system/sshd.service
systemctl daemon-reload
cp /tmp/openssh/openssh-8.3p1/contrib/redhat/sshd.init /etc/init.d/sshd
/etc/init.d/sshd restart
chkconfig --add sshd
/etc/init.d/sshd status
ssh -V

29:关闭虚拟机转换镜像并同步到公共镜像区
