关于执行
Executor是C++中执行的基本构造块,在执行中扮演如同容器分配器的角色。异步、标准模板库的并行算法、future的协同、任务块的运行、网络TS(技术规范,technical specification)的提交、调度或延迟调用等功能都会使用到异步执行。此外,因为没有标准化的执行方式,所以“执行”是编程时的基本关注点。
下面是提案P0761的示例。
parallel_for的实现
void parallel_for(int facility, int n, function<void(int)> f) {
if(facility == OPENMP) {
#pragma omp parallel for
for(int i = 0; i < n; ++i) {
f(i);
}
}
else if(facility == GPU) {
parallel_for_gpu_kernel<<<n>>>(f);
}
else if(facility == THREAD_POOL) {
global_thread_pool_variable.submit(n, f);
}
}
这个parallel_for有一些问题:
- parallel_for这样看起来简单的函数,维护起来其实非常复杂。如果支持新的算法或新的并行范例,会变得越来越复杂。(译者:这里指的是分支中不同平台的实现,如果有新算法或新平台,则函数体会变得越来越臃肿。)
- 函数的每个分支的同步属性也不同。OpenMP可能会阻塞运行,直到所有的派生线程完成,GPU通常异步运行的,线程池可能阻塞或不阻塞。不完全的同步可能会导致数据竞争或死锁。
- parallel_for的限制太多。例如,没有办法使用自定义的线程池替换全局线程池:
global_thread_pool_variable.submit(n, f);
路漫漫其修远兮
2018年10月,已经提交了很多关于executor的提案了,许多设计非常开放,真期望它们能成为C++23的一部分,或有可能用C++20对单向执行进行标准化。本章主要是基于对executor的P0761号提案]($content-The-Details-The-Future-CPP-20-23-)的设计建议,和在P0443和P1244提案中的描述进行的。P0443(统一的executor)中提出了单向执行,它可能是C++20的一部分,P1244(统一的executor的从属执行)提出了从属执行,它可能是C++23的一部分。本章还提到了相对较新的P1055提案,“适当executor提案”。
Executor是什么?
什么是executor?executor由一组关于在何处、何时以及如何运行可调用单元的规则组成。
- 何处: 可调用项可以在内部或外部处理器上运行,并且结果是从内部或外部处理器中进行读取。
- 何时: 可调用项可以立即运行,也可以延迟运行。
- 如何: 可调用项的可以在CPU或GPU上运行,甚至可以以向量化的方式执行。
更正式地说,每个executor都具有与所执行函数相关联的属性。
Executor属性
可以通过两种方式,将这些属性与executor关联起来:execution::require
或execution::prefer
- 方向性:执行函数可以是“触发即忘”(
execution::oneway
)、返回一个future(execution::twoway
)或返回一个continuation(execution::then
)。 - 基数性:执行函数可以创建一个(
execution::single
)或多个执行代理(execution::bulk
)。 - 阻塞性:函数可阻塞也可不阻塞,有三个互斥的阻塞属性:
execution::blocking.never
,execution::blocking.possibly
和execution::blocking.always
。 - 持续性:任务可能是由客户端上的线程执行(
execution::continuation
),也可能不执行(execution::not_continuation
)。 - 可溯性:指定跟踪未完成的工作(
exection::outstanding_work
),或不跟踪(execution::outstanding_work.untracked
)。 - 批量进度保证:指定在批量属性,
execution::bulk_sequenced_execution
、execution::bulk_parallel_execution
和execution::bulk_unsequenced_execution
,这些属性是互斥的,通过使用这些属性创建的执行代理,可以保证任务的进度。 - 执行线程映射:将每个执行代理映射到一个新线程(
execution::new_thread_execution_mapping
),或者不映射(execution::thread_execution_mapping
)。 - 分配器:将分配器(
execution::allocator
)与executor关联起来。
也可以自己来定义属性。
Executor是基础构建块
因为executor是执行的构建块,C++的并发性和并行性特性在很大程度上依赖于它们。这也适用于扩展future,网络的N4734扩展,甚至是适用于STL的并行算法,以及C++20/23中的新并发特性,如门闩和栅栏、协程、事务性内存和任务块。
举个例子
使用Executor
下面的代码片段,展示了executor的用法:
std::async
// get an executor through some means
my_executor_type my_executor = ...
// launch an async using my executor
auto future = std::async(my_executor, [] {
std::cout << "Hello world, from a new execution agent!" << std::endl;
});
STL算法std::for_each
// get an executor through some means
my_executor_type my_executor = ...
// execute a parallel for_each "on" my executor
std::for_each(std::execution::par.on(my_executor),
data.begin(), data.end(), func);
网络技术规范:允许客户端连接默认系统Executor
// obtain an acceptor (a listening socket) through some means
tcp::acceptor my_acceptor = ...
// perform an asynchronous operation to accept a new connection
acceptor.async_accept(
[](std::error_code ec, tcp::socket new_connection)
{
...
}
);
网络技术规范:允许客户端连接带有线程池的Executor
// obtain an acceptor (a listening socket) through some means
tcp::acceptor my_acceptor = ...
// obtain an executor for a specific thread pool
auto my_thread_pool_executor = ...
// perform an asynchronous operation to accept a new connection
acceptor.async_accept(
std::experimental::net::bind_executor(my_thread_pool_executor,
[](std::error_code ec, tcp::socket new_connection)
{
...
}
)
);
网络技术规范N4734的std::experimental::net::bind_executor
函数允许使用特定的executor。本例中,程序在线程池中执行Lambda函数。
要使用executor ,必须进行获取。
获取Executor
获取Executor的方法有很多。
源于自执行上下文static_thread_pool
// create a thread pool with 4 threads
static_thread_pool pool(4);
// get an executor from the thread pool
auto exec = pool.executor();
// use the executor on some long-running task
auto task1 = long_running_task(exec);
源自执行策略std:: Execution::par
// get par's associated executor
auto par_exec = std::execution::par.executor();
// use the executor on some long-running task
auto task2 = long_running_task(par_exec);
源于系统的Executor
通常使用线程执行的默认程序。如果有变量没有指定,那就可以使用它。
源于Executor适配器
// get an executor from a thread pool
auto exec = pool.executor();
// wrap the thread pool's executor in a logging_executor
logging_executor<decltype(exec)> logging_exec(exec);
// use the logging executor in a parallel sort
std::sort(std::execution::par.on(logging_exec), my_data.begin(), my_data.end());
logging_executo是循环executor的包装器。
Executor的目标
提案P1055中,executor的目的是什么呢?
- 批量化:权衡可调用单元的转换成本和大小。
- 异构化:允许可调用单元在异构上下文中运行,并能返回结果。
- 有序化:可指定调用顺序,可选的顺序有:后进先出LIFO)、先进先出FIFO) 、优先级或耗时顺序,甚至是串行执行。
- 可控化:可调用的对象必须是特定计算资源的目标,可以延迟,也可以取消。
- 持续化:需要可调用信号来控制异步,这些信号必须指示结果是否可用、是否发生了错误、何时完成或调用方是否希望取消,并且显式启动或停止可调用项也应该是可以的。
- 层级化:层次结构允许在不增加用例复杂性的情况下添加功能。
- 可用化:易实现和易使用,应该是主要目标。
- 组合化:允许用户扩展executor的功能。
- 最小化:executor中不应该存在任何库外添加的内容。
术语
提案P0761为可执行单元定义了一些执行的新术语:
- 执行资源:能够执行可调用的硬件和/或软件,执行单元可以是SIMD,也可以是管理大量线程集合的运行时。CPU或GPU的执行资源是异构的,所以它们有不同的限制。
- 执行上下文:是一个程序对象,表示特定的执行资源集合和这些资源中的执行代理。典型的例子是线程池、分布式运行时或异构运行时。
- 执行代理:特定执行单元的上下文,该上下文映射到执行资源上的单个可调用单元。典型的例子是CPU线程或GPU执行单元。
- 执行器:与特定上下文关联的执行对象。提供一个或多个执行函数,用于创建可调用函数对象的执行代理。
执行函数
执行程序可提供一个或多个执行函数,用于创建可调用对象的执行代理。执行程序至少支持以下六个功能中的一个。
名称 | 基数性 | 方向性 |
---|---|---|
execute | 单个 | oneway |
twoway_execute | 单个 | twoway |
then_execute | 单个 | then |
bulk_execute | 批量 | oneway |
bulk_twoway_execute | 批量 | twoway |
bulk_then_execute | 批量 | then |
每个执行函数都有两个属性:基数性和方向性。
- 基数性
- 单个: 创建一个执行代理
- 批量 : 创建一组执行代理
- 方向性
- oneway : 创建执行代理,但不返回结果
- twoway : 创建一个执行代理,并返回一个可用于等待执行完成的future
- then : 创建一个执行代理,并返回一个可用于等待执行完成的future。给定的future准备好后,执行代理开始执行。
让我更简单的解释一下执行功能,他们都有一个可执行单元。
基数性:单个
单个基数性很简单,单向执行函数是以“触发即忘”的方式执行,返回void。它非常类似于“触发即忘”的future,但它不会自动阻止future的销毁。twoway执行函数返回future,可以使用它来获取结果。类似于std::promise
,它将返回关联std::future
的句柄。这种情况下,执行代理仅在提供的future准备好时才运行。
基数性:批量
批量基数性的情况比较复杂。这些函数创建一组执行代理,每个执行代理调用给定的可调用单元f
,它们返回一个结果代理。f
的第一个参数是shape
参数,它是一个整型,代表代理类型的索引。进一步的参数是结果代理,如果是twoway执行器,那么就和所有代理共享shape
代理。用于创建共享代理的参数,其生存期与代理的生存期绑定在一起。因为它们能够通过执行可调用单元产生相应的价值,所以称为代理。客户端负责通过这个结果代理,消除结果的歧义。
使用bulk_then_execute函数时,可调用单元f
将其之前的future作为附加参数。因为没有代理是所有者,所以可调用单元f
可通过引用获取结果、共享参数和前次结果。
execution::require
如何确保执行程序支持特定的执行功能?
在特殊情况下,你需要对其有所了解。
void concrete_context(const my_oneway_single_executor& ex)
{
auto task = ...;
ex.execute(task);
}
通常情况下,可以使用函数execution::require
来申请。
template<class Executor>
void generic_context(const Executor& ex)
{
auto task = ...;
// ensure .toway_execute() is available with execution::require()
execution::require(ex, execution::single, execution::twoway).toway_execute(task);
}
实现原型
基于提案P0443R5,executor提案有了具体的实现原型。这个实现原型,可以帮助我们更深入地了解了批量基数。
// executor.cpp
#include <atomic>
#include <experimental/thread_pool>
#include <iostream>
#include <utility>
namespace execution = std::experimental::execution;
using std::experimental::static_thread_pool;
using std::experimental::executors_v1::future;
int main() {
static_thread_pool pool{ 4 };
auto ex = pool.executor();
// One way, single
ex.execute([] {std::cout << "We made it!" << std::endl; });
std::cout << std::endl;
// Two way, single
future<int> f1 = ex.twoway_execute([] {return 42; });
f1.wait();
std::cout << "The result is: " << f1.get() << std::endl;
std::cout << std::endl;
// One way, bulk.
ex.bulk_execute([](int n, int& sha) {
std::cout << "part " << n << ": " << "shared: " << sha << "\n";
}, 8,
[] {return 0; }
);
std::cout << std::endl;
// Two way, bulk, void result
future<void> f2 = ex.bulk_twoway_execute(
[](int n, std::atomic<short>& m) {
std::cout << "async part " << n;
std::cout << " atom: " << m++ << std::endl;
}, 8,
[] {},
[] {
std::atomic<short> atom(0);
return std::ref(atom);
}
);
f2.wait();
std::cout << "bulk result available" << std::endl;
std::cout << std::endl;
// Two way, bulk, non-void result.
future<double> f3 = ex.bulk_twoway_execute(
[](int n, double&, int&) {
std::cout << "async part " << n << " ";
std::cout << std::this_thread::get_id() << std::endl;
}, 8,
[] {
std::cout << "Result factory: "
<< std::this_thread::get_id() << std::endl;
return 123.456; },
[] {
std::cout << "Shared Parameter: "
<< std::this_thread::get_id() << std::endl;
return 0; }
);
f3.wait();
std::cout << "bulk result is " << f3.get() << std::endl;
}
该程序使用具有四个线程的线程池进行执行(第14行和第15行)。第18行和第23行使用单基数的执行函数,并创建两个单基数的代理。第二个是twoway执行函数,因此返回一个结果。
第30、39和56行中的执行函数具有批量基数性。每个函数创建8个代理(第32、43和60行)。第一种情况中,可调用单元会显示索引n
和共享值sha
,sha
是由共享代理在第33行创建的。下一个执行函数bulk_twoway_execute
更有趣。虽然它的结果代理返回void,但共享状态是原子变量atom

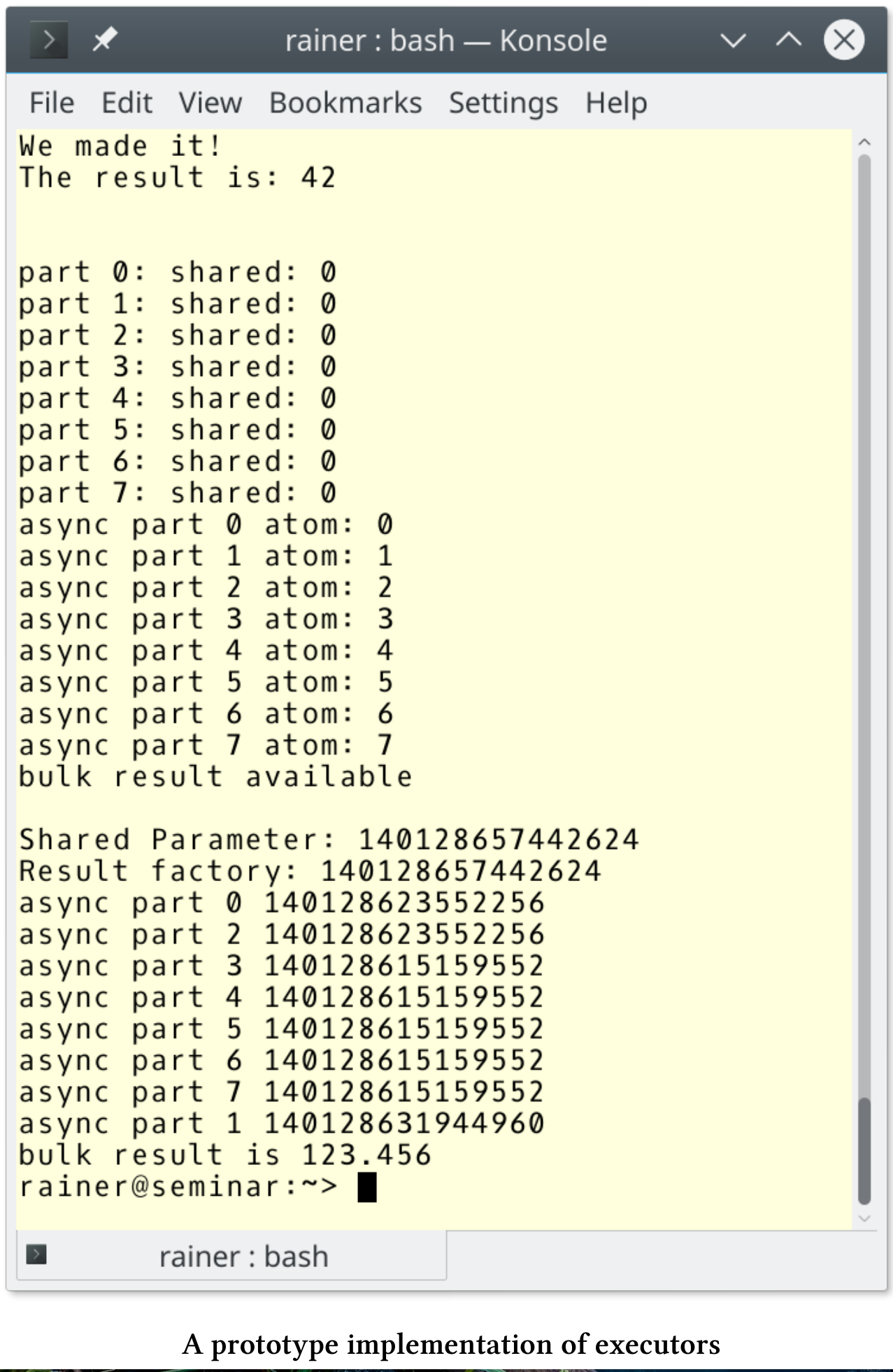

。每个代理将其值增加1(第42行)。通过结果代理,最后一个执行函数(第56到69行)返回123.456。有趣的是,在可调用的执行、结果和共享代理的执行中涉及到多少线程呢?程序的输出显示结果和共享代理运行在同一个线程中,而其他代理运行在不同的线程中。
