4.卡片布局

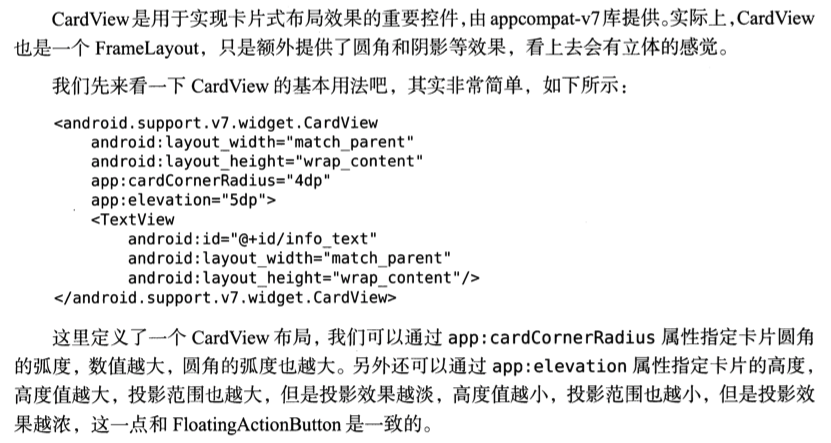

1.CardView

布局

package com.example.materialtest;
import android.content.Context;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ImageView;
import android.widget.TextView;
import androidx.annotation.NonNull;
import androidx.cardview.widget.CardView;
import androidx.recyclerview.widget.RecyclerView;
import com.bumptech.glide.Glide;
import java.util.List;
/**
 * FruitAdapter
 *
 * @author lxl @date 2019/12/7 18:47
 * @version 1.0
 */
public class FruitAdapter extends RecyclerView.Adapter<FruitAdapter.ViewHolder> {
    private Context mContext;
    private List<Fruit> mFruitList;
    static class ViewHolder extends RecyclerView.ViewHolder {
        private CardView cardView;
        private ImageView fruitImage;
        private TextView fruitName;
        public ViewHolder(@NonNull View view) {
            super(view);
            cardView = (CardView) view;
            fruitImage = view.findViewById(R.id.fruit_image);
            fruitName = view.findViewById(R.id.fruit_name);
        }
    }
    public FruitAdapter(List<Fruit> mFruitList) {
        this.mFruitList = mFruitList;
    }
    @NonNull
    @Override
    public FruitAdapter.ViewHolder onCreateViewHolder(@NonNull ViewGroup parent, int viewType) {
        if (mContext == null) {
            mContext = parent.getContext();
        }
        View view = LayoutInflater.from(mContext).inflate(R.layout.fruit_item, parent, false);
        return new ViewHolder(view);
    }
    @Override
    public void onBindViewHolder(@NonNull FruitAdapter.ViewHolder holder, int position) {
        Fruit fruit = mFruitList.get(position);
        holder.fruitName.setText(fruit.getName());

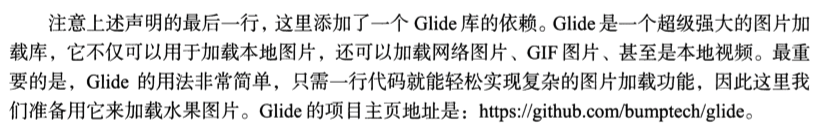

        // 使用Glide加载图片
        Glide.with(mContext).load(fruit.getImageId()).into(holder.fruitImage);
    }
    @Override
    public int getItemCount() {
        return mFruitList.size();
    }
}

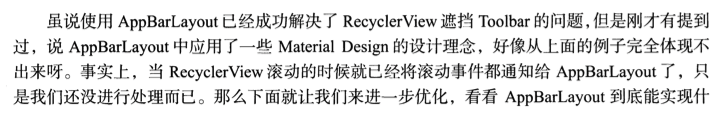

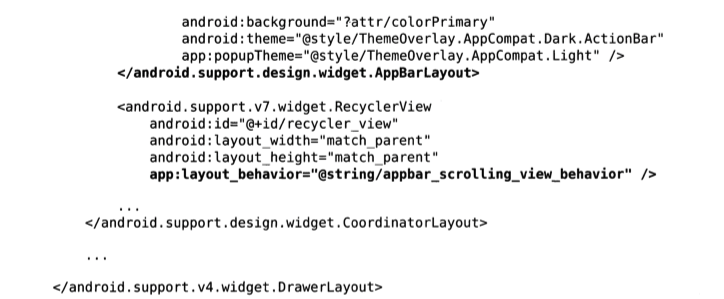

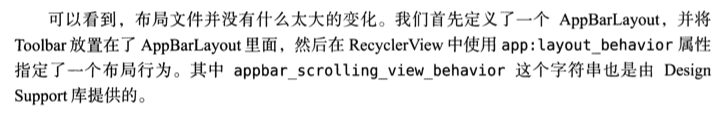

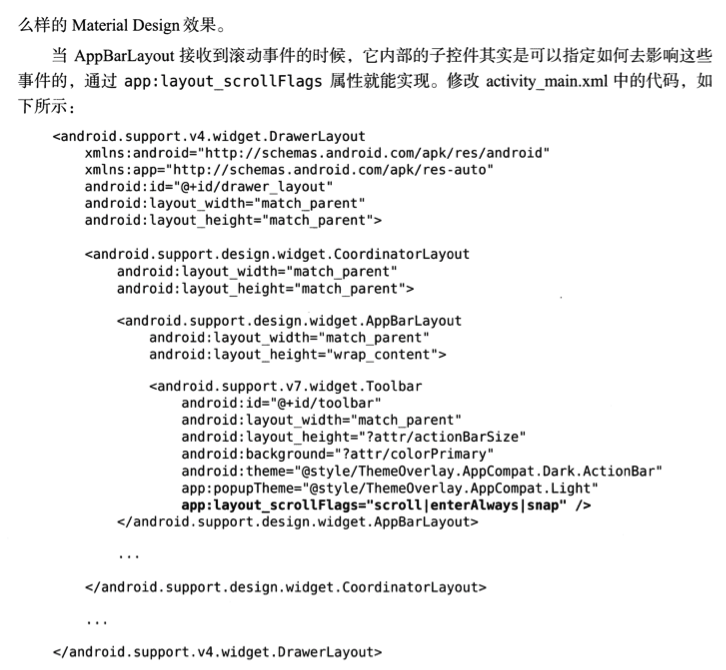

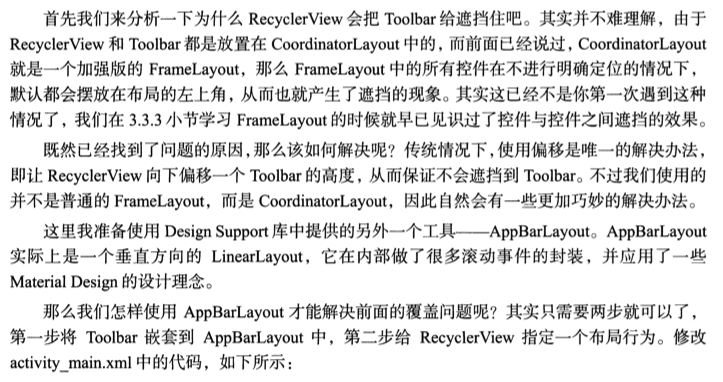

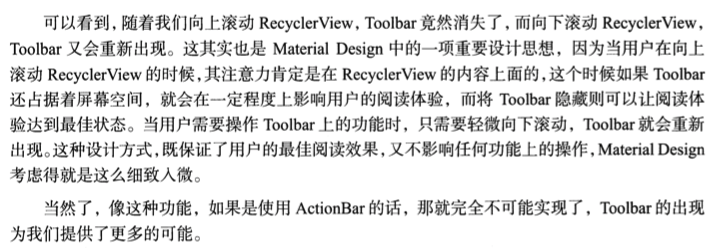

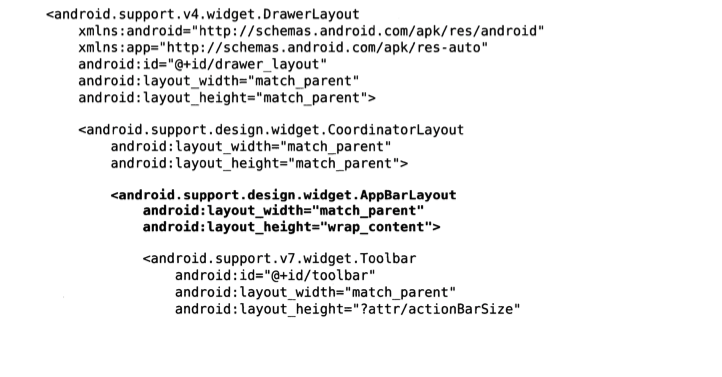

2.AppBarLayout
